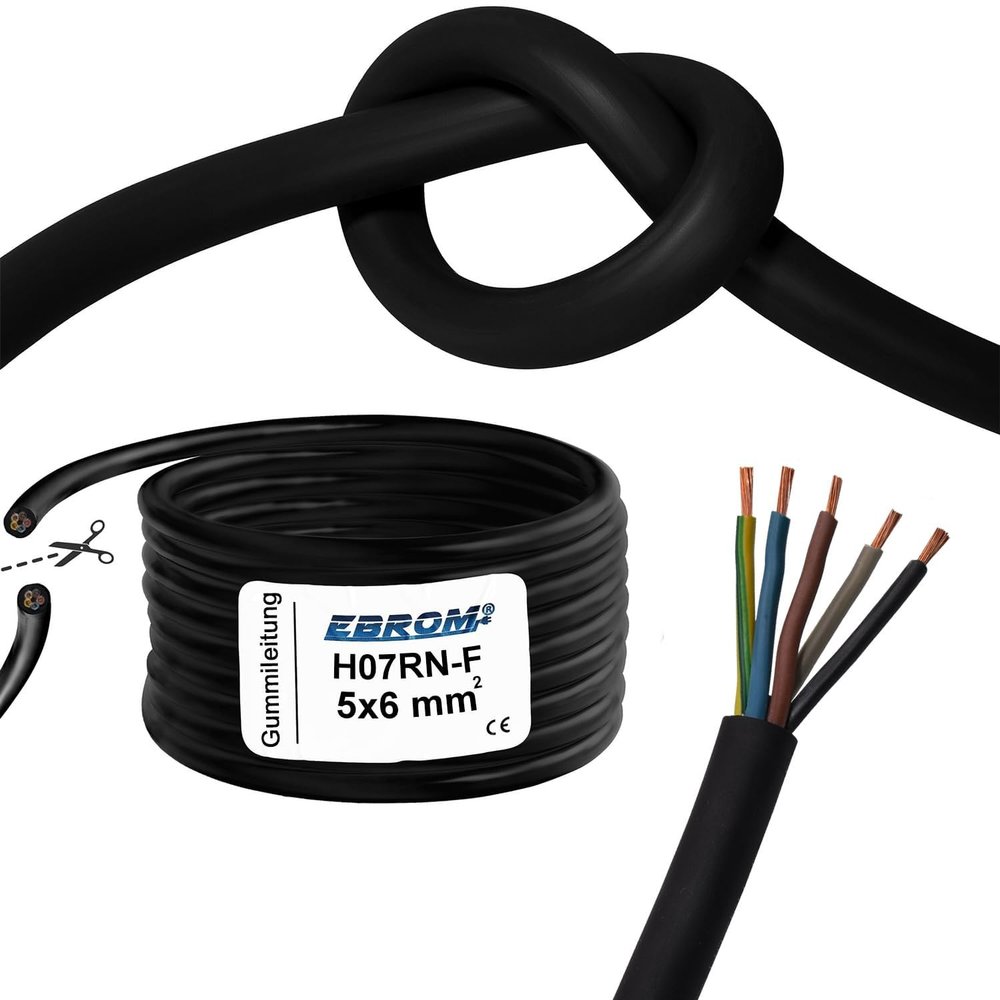

EBROM Flexible H07RN-F 5 x 6 mm Rubber Cable, Black, 15 m

Description

• H07RN-F rubber cable with 5 cores: blue, brown, gray, black, and green/yellow
• Cross-section: 5 x 6 mm; approximate outer diameter: 19.5 mm
• Highly flexible and robust; suitable for supplying power to EV charging stations when installation requirements are followed
• Suitable for dry and damp areas; resistant to oil, gasoline, alkalis, fats, and chemicals
• Rated voltage U0/U: 450/750 V; test voltage: 2,500 V
• Temperature range: flexible installation -25C to +60C; fixed installation -40C to +60C
• Self-extinguishing according to EN 60332-1-2; fire performance class Eca according to EN 13501-6

The extremely robust and flexible H07RN-F rubber cable is frequently used by electricians to supply power to EV charging stations. Its high flexibility and mechanical strength make it easy to install in conduits, avoiding the difficulties associated with overly rigid cables. It is suitable for installation in both dry and damp areas and offers excellent resistance to oil, gasoline, alkalis, fats, and chemicals. The cable complies with EN 50525-2-21, EN 60228, EN 60811, EN 50363, and EN 60332-1-2. It consists of fine-stranded bare copper conductors with rubberized neoprene insulation and an outer sheath. Applications include industrial equipment and machinery, outdoor use such as garden equipment, outdoor lighting, and construction sites, event technology including stage equipment, speakers, and lighting, as well as heating and air-conditioning technology. Safety note: According to DIN VDE 0100-520, flexible cables may be used for fixed installation provided they are continuously installed in conduits or protected by equivalent measures. The cable is selected and prepared by EBROM cable specialists.
