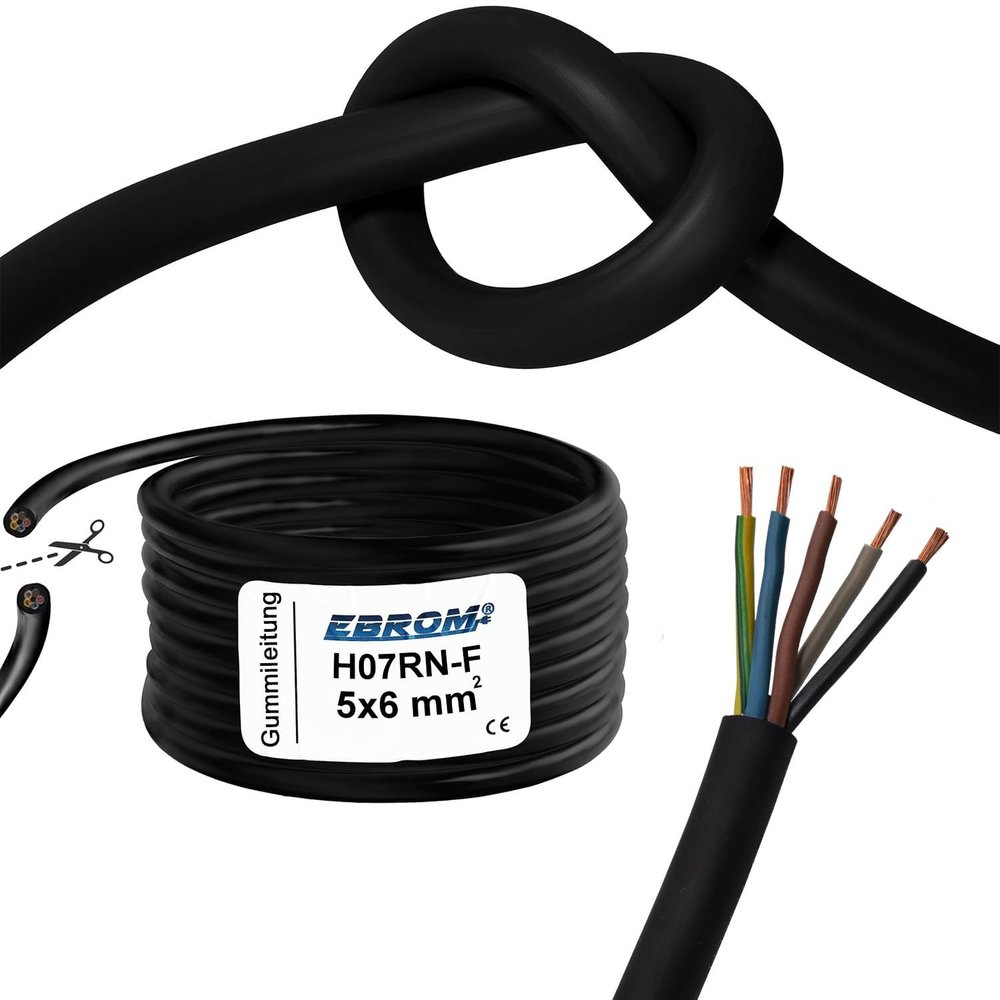

EBROM CEE Flexible H07RN-F 5 x 6 mm² Rubber Cable, UV- and Oil-Resistant, 57 m

Description

• H07RN-F rubber cable with 5 cores: blue, brown, green/yellow, gray, and black
• Cross-section: 5 x 6 mm; outer diameter: approx. 22.2 mm
• Suitable for connecting heating appliances, tools, portable equipment, and machines under medium mechanical stress
• Suitable for dry and damp rooms, outdoor use, commercial and agricultural operations, and construction sites
• May be permanently installed in temporary structures, construction sites, conveyor systems, and machines
• Available in continuous lengths from 10 to 100 meters; select the desired length in meters when ordering
• Highly flexible and mechanically robust; suitable for machines, events, and construction sites
• Resistant to oil, gasoline, alkalis, grease, and chemicals
• Safety note: According to DIN VDE 0100-520, flexible cables may be permanently installed only when continuously enclosed in conduits or provided with equivalent protective measures
• Rated voltage U0/U: 450/750 V; test voltage: 2,500 V
• Temperature range: moving installation -25C to +60C; fixed installation -40C to +60C
• Flame-retardant and self-extinguishing according to EN 60332-1-2; fire behavior class Eca according to EN 13501-6
• Selected and cut to length by EBROM cable professionals

The H07RN-F cable, manufactured in a harmonized design according to VDE 0282, is suitable for applications requiring a robust and reliable power supply. Its properties and quality make it suitable for connecting heating appliances, commercial tools, portable equipment, and machines, particularly in environments subject to medium mechanical stress. The cable is suitable for use in dry and damp rooms, outdoors, and in potentially explosive areas. It is also suitable for commercial and agricultural operations, construction sites, temporary structures, conveyor systems, and machines. Rated voltage: U0/U = 450/750 V~; for fixed and protected installation in conduits or equipment, it is also approved for 600/1000 V~. Minimum bending radius: 4 x the outer diameter for fixed installation and 6 x the outer diameter for moving use. Core colors are according to DIN VDE 0293. The outer sheath is black. Temperature range: -25C to +60C for moving use and -40C to +60C for fixed installation. Fire behavior class according to EN 13501-6: Eca. The robust outer sheath protects against external influences and adverse environmental conditions, while the high flexibility enables easy installation, even in complex environments.
