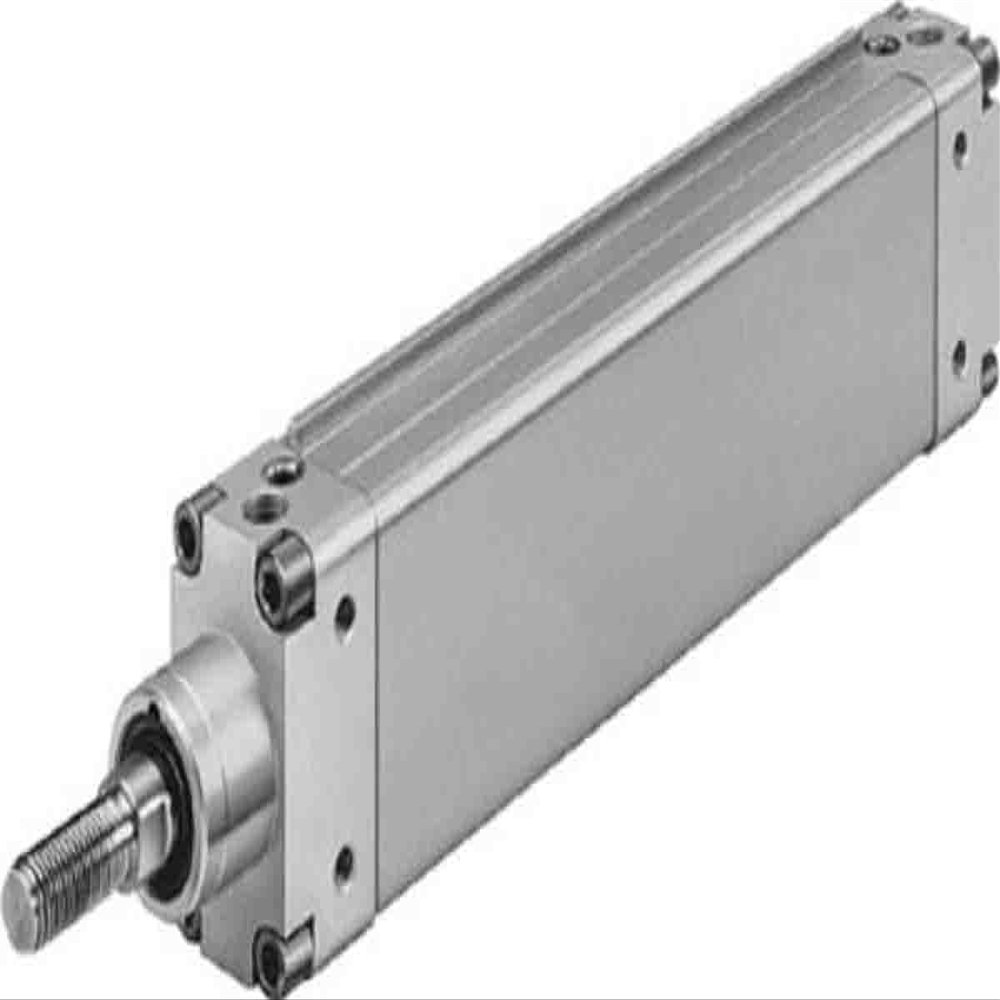

DZH-40-125-PPV-A (14057) Flat Cylinder, 125 mm Stroke, 40 mm Piston Diameter, Equivalent Diameter

Description

• Stroke: 125 mm
• Piston diameter: 40 mm
• Double-acting operation
• Adjustable pneumatic cushioning on both sides
• Operating pressure: 0.610 bar
• Theoretical force at 6 bar: 633.0 N retracting, 754 N extending
• Oval piston for anti-rotation and guidance
• Position sensing for proximity switches
• Operating temperature: 20 to 80 C
• Pneumatic connection: G1/4

Flat cylinder with a 125 mm stroke and 40 mm piston diameter. The maximum permissible rotation angle of the piston rod is 1.40. It features adjustable pneumatic cushioning on both sides and can be installed in any position. The cylinder is double-acting and has a piston and piston rod design. Position sensing is provided for proximity switches. The oval piston provides anti-rotation and guidance. Operating pressure: 0.6 to 10 bar. Operating medium: compressed air according to ISO 8573-1:2010 [7:4:4]. Lubricated operation is possible; lubrication is required for continued operation. Corrosion resistance class KBK 2, moderate corrosion stress. Cushioning length: 21 mm. Maximum anti-rotation torque: 1.2 Nm. Theoretical force at 6 bar: 633.0 N retracting and 754 N extending. Weight increase per 10 mm of stroke: 40 g. Basic weight at 0 mm stroke: 820 g. Mounting type: internal thread, with optional accessories. Pneumatic connection: G1/4. RoHS compliant. Cover material: aluminum. Seal material: TPE-U (PU). Housing material: aluminum. Piston rod material: high-alloy steel.
