DSBG-160-100-PPVA-N3 Standard Cylinder, 100 mm Stroke, 160 mm Piston Diameter

Description

• Stroke: 100 mm
• Piston diameter: 160 mm
• Double-acting operation
• ISO 15552 compliant
• Pneumatic cushioning, adjustable on both sides
• Mounting position: any
• Operating pressure: 0.6 to 10 bar
• Operating medium: compressed air according to ISO 8573-1:2010 [7:4:4]
• Piston rod with external thread
• Position sensing for proximity switches
• Pneumatic connection: G3/4

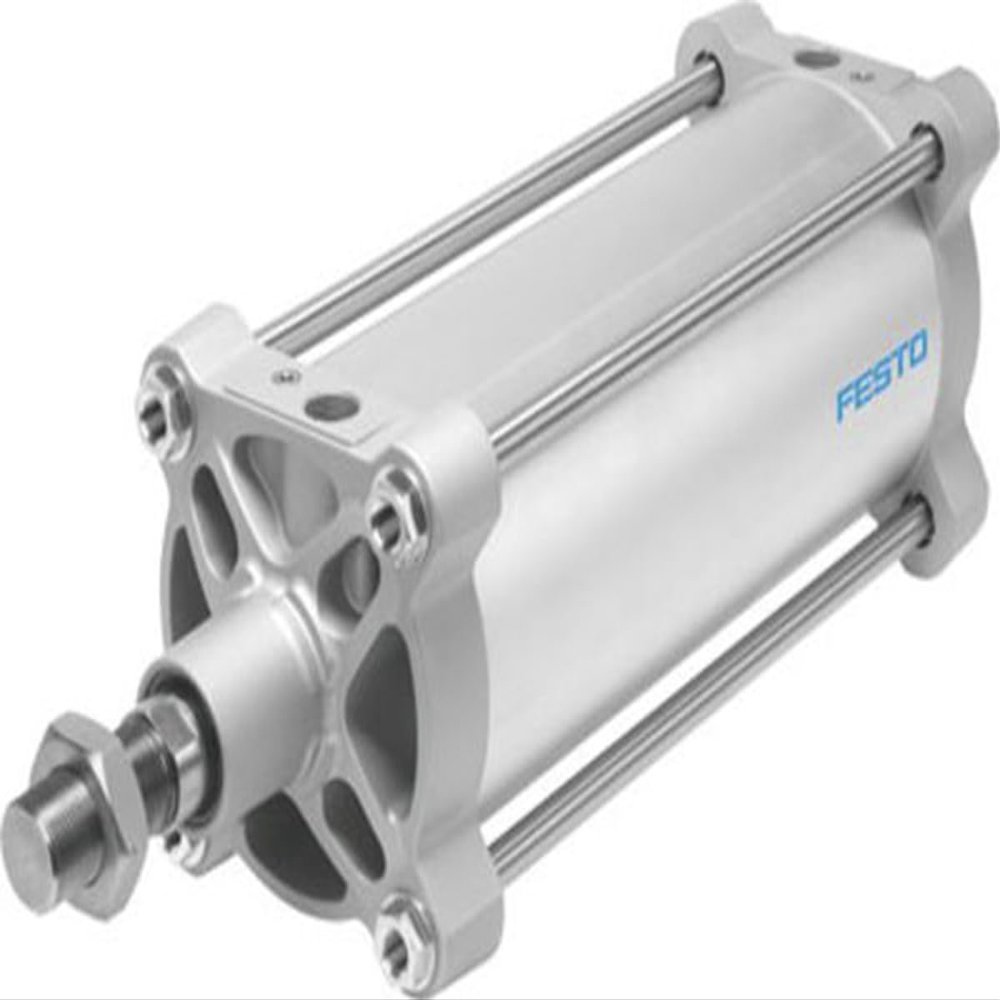

Standard cylinder DSBG-160-100-PPVA-N3 (2029466) with a 100 mm stroke and 160 mm piston diameter. It has a single-sided piston rod, is double-acting, and complies with ISO 15552. The PPV pneumatic cushioning is adjustable on both sides, and the cylinder can be installed in any position. Operating pressure is 0.6 to 10 bar. The design consists of a piston, piston rod, cylinder tube, and tie rods. The piston rod end has an external thread, and position sensing is provided for proximity switches. Lubricated operation is possible and required for continued operation. Corrosion resistance class KBK 2: moderate corrosive stress. Ambient temperature: -20 to 80 C. Impact energy at the end positions: 3.3 J. Cushioning length: 48 mm. Theoretical force at 6 bar: 11,310 N retracting and 12,064 N extending. Moving mass at 0 mm stroke: 4,292 g. Additional moving mass per 10 mm stroke: 208 g. Base weight at 0 mm stroke: 11,751 g. Weight increase per 10 mm stroke: 97 g. Mounting is via internal thread, with accessories optionally available. Materials: coated cast aluminum covers, NBR piston seal and wiper, cast aluminum piston, high-alloy steel piston rod and tie rods, TPE-U (PU) cushioning seal, POM cushioning piston, sliding-anodized wrought aluminum alloy cylinder tube, zinc-plated steel nut and collar nut, and a metal-polymer composite bearing. RoHS compliant.
