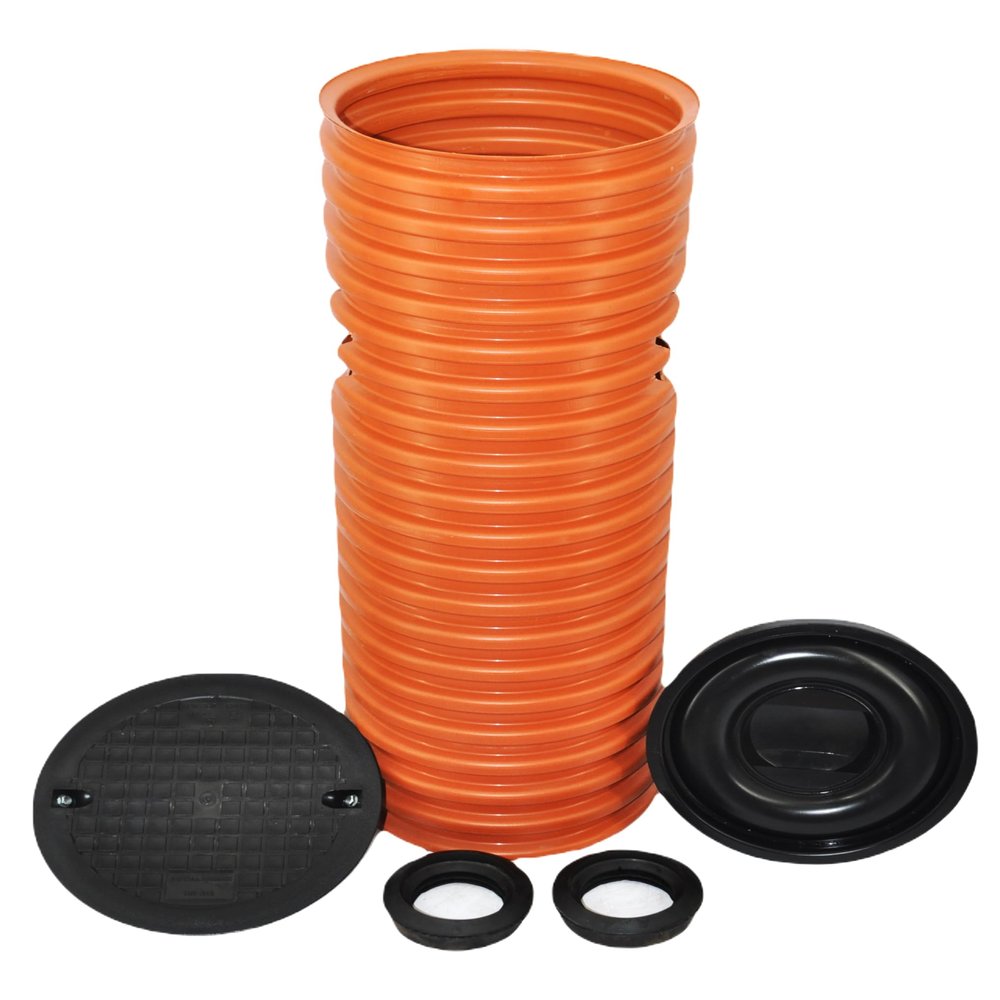

DN315 Drainage Inspection Shaft, 0.5 m/1 m, 2x DN110/160 Connections

Description

• Inner diameter: 320 mm; outer diameter: 350 mm
• Color: orange
• Pipe system 315
• Available with a 0.5 m or 1 m shaft height
• Available with 2x DN110 or 2x DN160 inlets
• Available with or without a base
• Each variant includes a Class A15 shaft cover
• KG pipe temperature-resistant up to 50C
• High chemical resistance
• High abrasion resistance
• Suitable for wastewater and rainwater
• In the 0.5 m section, the couplings are 10 cm below the upper end of the pipe
• In the 1 m section, the couplings are 22 cm below the upper end of the pipe
• The pipe can be rotated so the connections are at the top or bottom

Orange DN315 drainage inspection shaft with an inner diameter of 320 mm and an outer diameter of 350 mm. Available in 0.5 m or 1 m heights, with 2x DN110 or 2x DN160 inlets, and with or without a base. Every variant includes a Class A15 shaft cover. The KG pipe is temperature-resistant up to 50C, offers high chemical and abrasion resistance, and is suitable for wastewater and rainwater. The couplings are positioned 10 cm below the upper end in the 0.5 m section and 22 cm below the upper end in the 1 m section. The pipe can be rotated to position the connections at the top or bottom.
