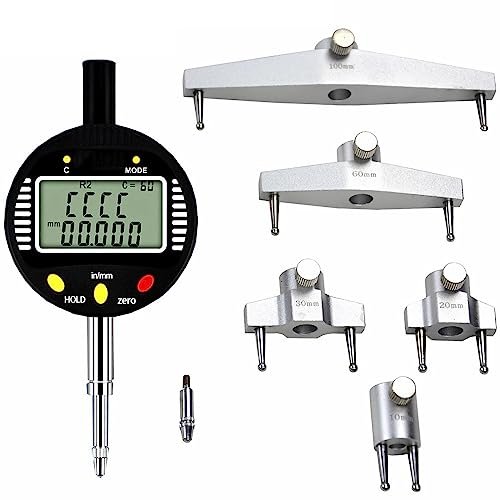

Digital Radius Gauge, 5–700 mm, with Interchangeable Jaws

Description

• Precise digital radius measurement for external and internal radii, depths, and steps; measuring range 012.7 mm with 0.005 mm resolution.
• Metric/imperial toggle switch for quick switching between millimeters and inches.
• Includes five interchangeable measuring jaws: 10 mm, 20 mm, 30 mm, 60 mm, and 100 mm.
• Clear LCD displays internal and external diameters, jaw sizes, radius values, and metric or imperial units; includes data hold, unit conversion, and reset functions.
• Suitable for measuring external and internal radii of arcs, with a data output port for computer connection; useful for mechanical components, wood molds, structural steel molds, and more.

Radius measurements for arcs are commonly performed with radius gauges, but their use is limited because they measure only standard radii and rely on comparison measurements that may not provide accurate workpiece data. This tool is designed for measuring arc radii and is especially useful in plastic mold production. It features five measuring jaws in different lengths10 mm, 20 mm, 30 mm, 60 mm, and 100 mmwhich can be selected according to the measurement requirement, plus easy switching between millimeters and inches. Multifunctional operation includes indicator use, external measurement, internal measurement, depth measurement, and step measurement. Specifications: measuring range: 012.7 mm (00.5 in); radius range: 5700 mm (0.227.5 in); resolution: 0.005 mm (0.00005 in); length displacement display range: 013 mm; linear deviation: 0.02 mm; radius deviation: the source lists a value involving 0.01 R, but the exact formula is unclear. Power source: 3V CR2032 battery; operating temperature: 040C; relative humidity: up to 80%. Package includes 1 digital radius gauge set, 1 instruction manual, and 1 protective case.
