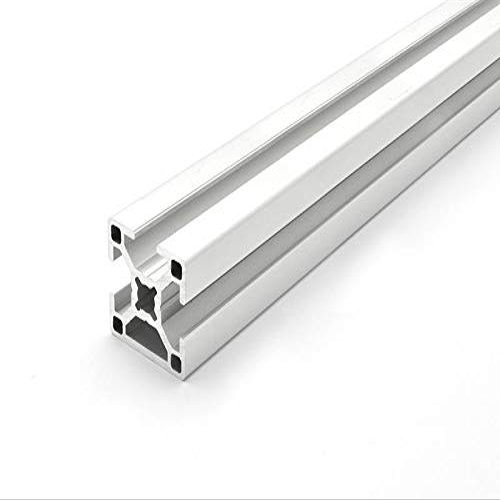

Design Aluminum Profile 30x30L, 1 Concealed Slot, B-Type Slot 8, Light, Silver Anodized, 410 mm

Description

• Design aluminum profile 30x30L with 1 concealed B-type slot 8
• Light version
• Silver anodized finish
• System profile length: 410 mm

Design profile / light aluminum profile 30x30, B-type slot 8, 1 concealed slot, silver anodized. Properties Slot: Slot 8 Version: Light Preload: 0.2 mm +0.1/-0.15 mm Slot dimension: 8.0 +0.3 mm Core hole for thread cutting: 6.8 -0.2 mm For special connectors: 7.3 +0.2/-0.1 mm Surface Anodizing: E6Ev1, 1015 m Anodizing contact areas: Removed Mechanical properties Designation: EN 572-3 | EN-AW 6063 Condition: EN 515 | T66 Rp0.2: 200 N/mm Rm: 245 N/mm A: 8% A50: 6% Hardness: HB 80 Area calculation Area: 343.8 | 343.8 Outer contour perimeter: 204.2 | 204.2 Centroid: X 15.0 | 15.0; Y 14.24 | 14.24 Area moments of inertia Second moment, horizontal: IX 32468.6 | 32468.6 Second moment, vertical: IY 29148.2 | 29148.2 Section moduli WX max: 2279.7 | 2279.7 WX min: 2060.5 | 2060.5 WY max: 1943.2 | 1943.2 WY min: 1943.2 | 1943.2 Nominal weight: approx. 0.932 kg | approx. 0.932 kg
