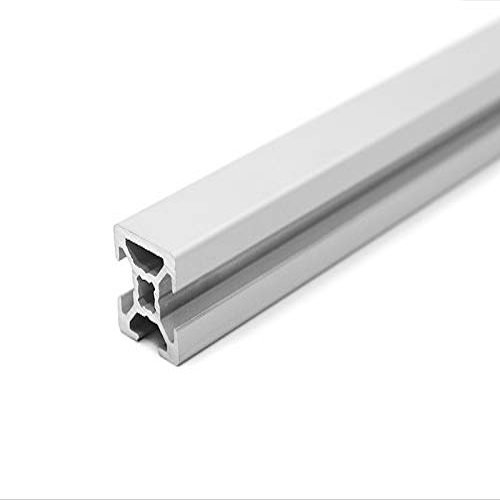

Design Aluminum Profile 20x20L, 1 Concealed Slot, B-Type Slot 6, Silver Anodized, 1580 mm

Description

• Design aluminum profile 20x20L with 1 concealed B-type slot 6 (light)
• Silver anodized finish
• System profile, 20 x 20 mm
• Length: 1580 mm

Design profile / lightweight 20x20 aluminum profile, B-type slot 6, with 1 concealed slot, silver anodized. Designation System: BSP - B-type Slot: 6 Grid: 20 Dimensions: 20 x 20 mm Design: Lightweight Preload: 0.2 mm +0.1/-0.15 Slot dimension: 6.0 +0.3 mm Core bore: 5.5 +0.2/-0.1 mm Surface Anodized finish E6Ev1, 10-15 m Contact points removed Standards and compliance Tolerances: EN 12020-2 REACH: Yes RoHS / RoHS 2: Yes Dodd-Frank: Yes Mechanical properties Designation: EN 572-3, EN-AW 6063 T66 Condition: EN 515 T66 Rp0.2 [N/mm]: 200 Rm [N/mm]: 245 A [%]: 8 A50 [%]: 6 Hardness [HB]: 80 Area calculation Area [mm]: 174.5 Outer contour perimeter [mm]: 132.8 Centroid: X [mm]: 10 Y [mm]: 9.47 Second moments of area Horizontal second moment, IX [mm]: 7515.6 Vertical second moment, IY [mm]: 6742.7 Section modulus: WX max [mm]: 793.1 WX min [mm]: 714.1 WY max [mm]: 674.3 WY min [mm]: 674.3 Nominal weight, approx. [kg/m]: 0.473
