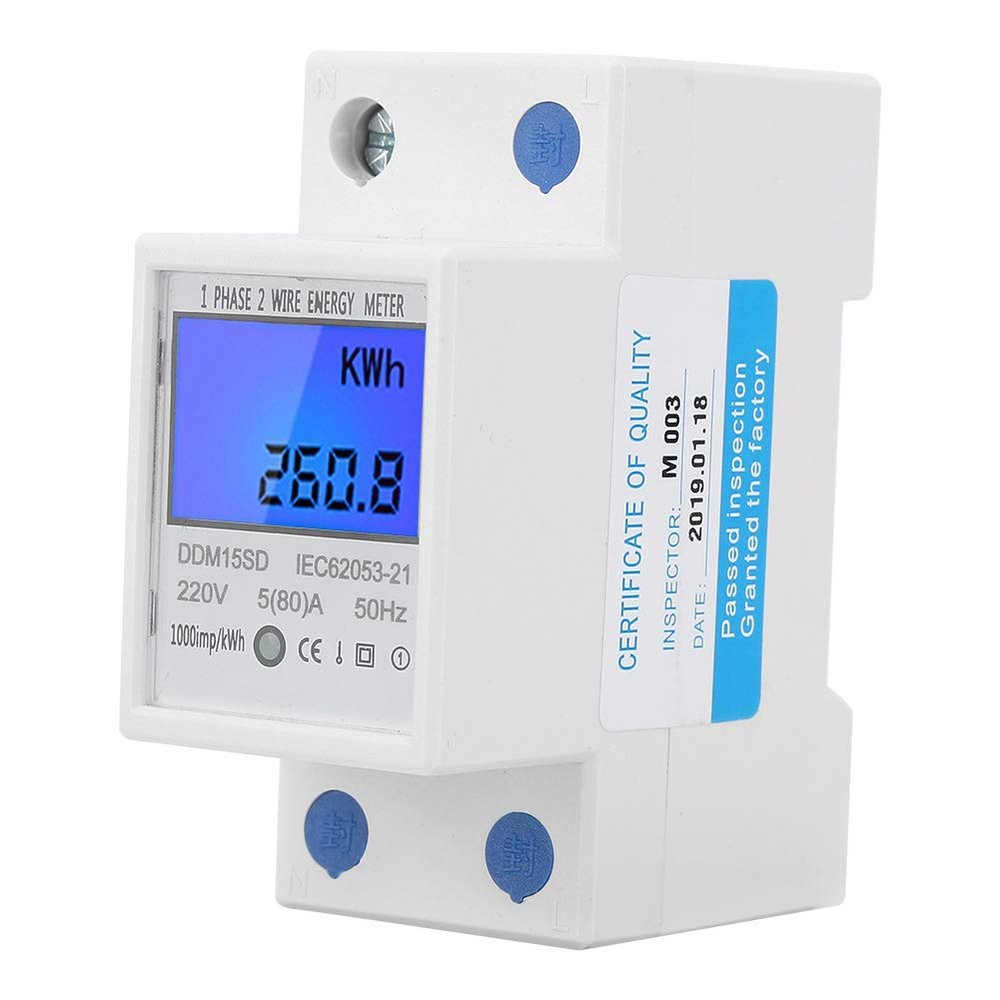

DDM15SD LCD Digital Energy Meter, 220/230 V, 5(80) A, Single-Phase DIN Rail

Description

• 35 mm DIN rail mounting compliant with DIN EN50022
• 17.5 mm pole width compliant with DIN43880
• Backlit LCD display with no reset button
• Displays current, voltage, frequency, and power
• Red energy pulse indicator LED

Features: 1. 35 mm DIN rail mounting compliant with DIN EN50022. 2. 17.5 mm pole width compliant with DIN43880. 3. Backlit LCD digital display with no reset button to prevent manual manipulation of the data. 4. Displays current, voltage, current, frequency, and power factor. 5. Red energy pulse indicator LED. 6. Embedded terminal cover to ensure power supply safety. 7. Features good reliability, compact size, light weight, an attractive appearance, and easy installation. 8. Uses microelectronics and digital processing technology to measure electrical energy accurately and reliably. 9. Uses large-scale integrated circuits and precision SMT technology for good resistance to electromagnetic interference and stable performance. Specifications: Material: Plastic Model: DDM15SD Accuracy: Class 1 Reference voltage: 220 V/230 V, 50/60 Hz Reference current (maximum current): 5(80) A Insulation: 4 kV AC withstand voltage for 1 minute; 1.2/50 s, 6 kV surge voltage waveform Display: Backlit LCD digital display Installation: 35 mm DIN rail Wiring method: Up-out and down-in / up-in and down-out Power: 17,000 W Ambient temperature: -20 to +50C Pole width: 17.5 mm/0.7 in Functions: Displays current, voltage, current, frequency, and power factor Product size: Approx. 8 3.7 6.7 cm/3.1 1.5 2.6 in Weight: Approx. 127.8 g Package contents: 1 Energy meter Note: This product does NOT have a reset function. The new and old types of this product will be sent at random. Please make sure this is acceptable before ordering.
