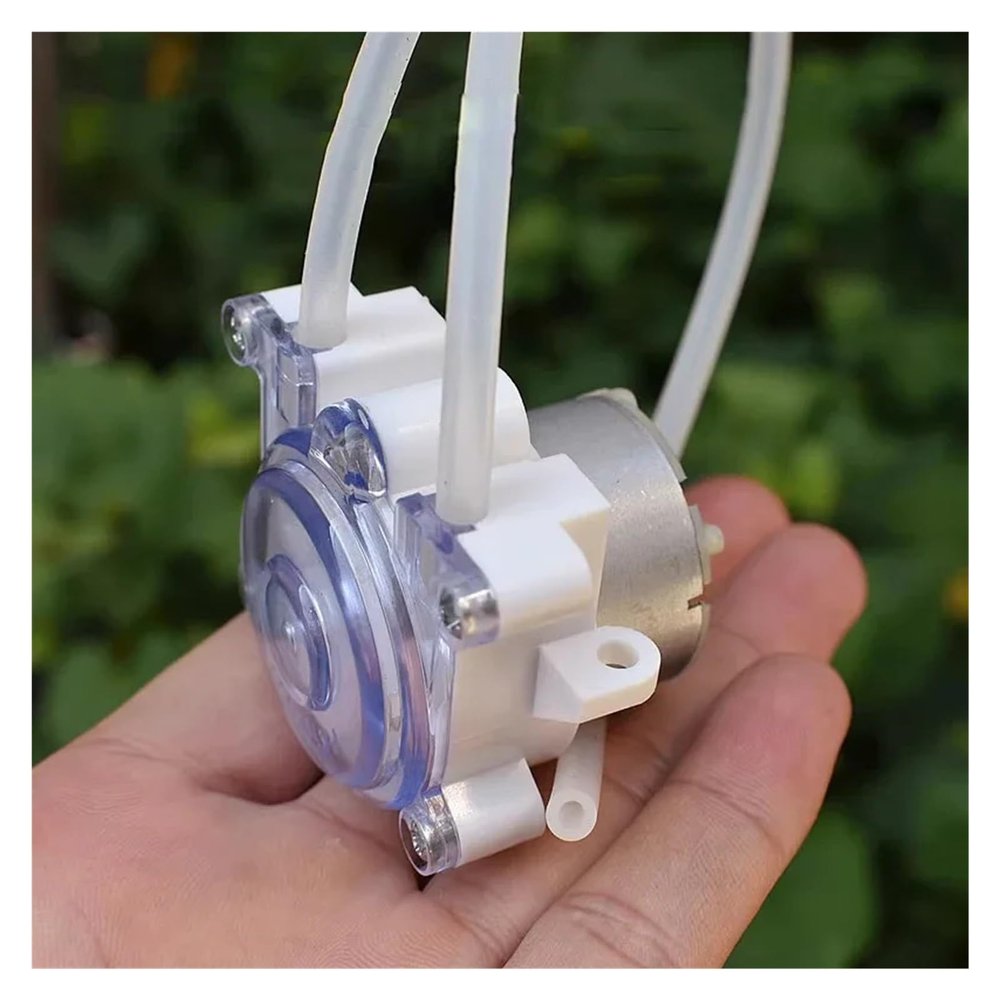

DC 6–12V Mini Peristaltic Dosing Pump with 500 Geared Motor

Description

• DC 612V peristaltic pump
• Dosing pump for liquids and water
• High delivery pressure for viscous and non-viscous liquids such as ink
• Wide voltage range: compatible with 612V DC
• Compact and lightweight: 70g
• 500 geared motor with precious-metal brushes
• Transparent top cover for visual monitoring

Specifications: Peristaltic pump with a 500 motor featuring precious-metal brushes. After reduction, the motor drives three rollers, which alternately compress the silicone tube to transport liquids. Peristaltic pumps provide high pressure but a low flow rate. Due to the high delivery pressure, this pump is suitable for transporting viscous and non-viscous liquids such as ink and other viscous liquids. The transparent top cover provides visual monitoring of pump operation. The pump uses a three-roller design. The lower halves of the three rollers are gears. The large gears on the rollers and the small gear on the motor shaft create a reduction ratio. This is a relatively new design. Peristaltic pumps are characterized by low delivery capacity combined with delivery pressure. At 12V DC, the output pressure is consistent. However, when pumping water, a peristaltic pump may not be as quiet as a diaphragm pump because it can vibrate. Securing the pump before use is therefore recommended. Water flow rate by voltage (manual measurement, for reference only): 12V: 293.8g/min 11V: 272.8g/min 10V: 242.8g/min 9V: 216.2g/min 8V: 188.8g/min 7V: 161.2g/min 6V: 132.2g/min 5V: 101.0g/min 4V: 71.3g/min 3V: 39.2g/min (air barely moves) 12V: 295.0g/min 13V: 323.3g/min 1. Model: Peristaltic pump with geared motor 2. Tube size: 2.5mm 4.5mm 3. Suitable voltage: DC 612V 4. Test data: - Voltage: 6V; operating current: 0.5A - Voltage: 12V; operating current: 0.6A 5. Pump weight: 70g Package contents: 1 Mini peristaltic pump
