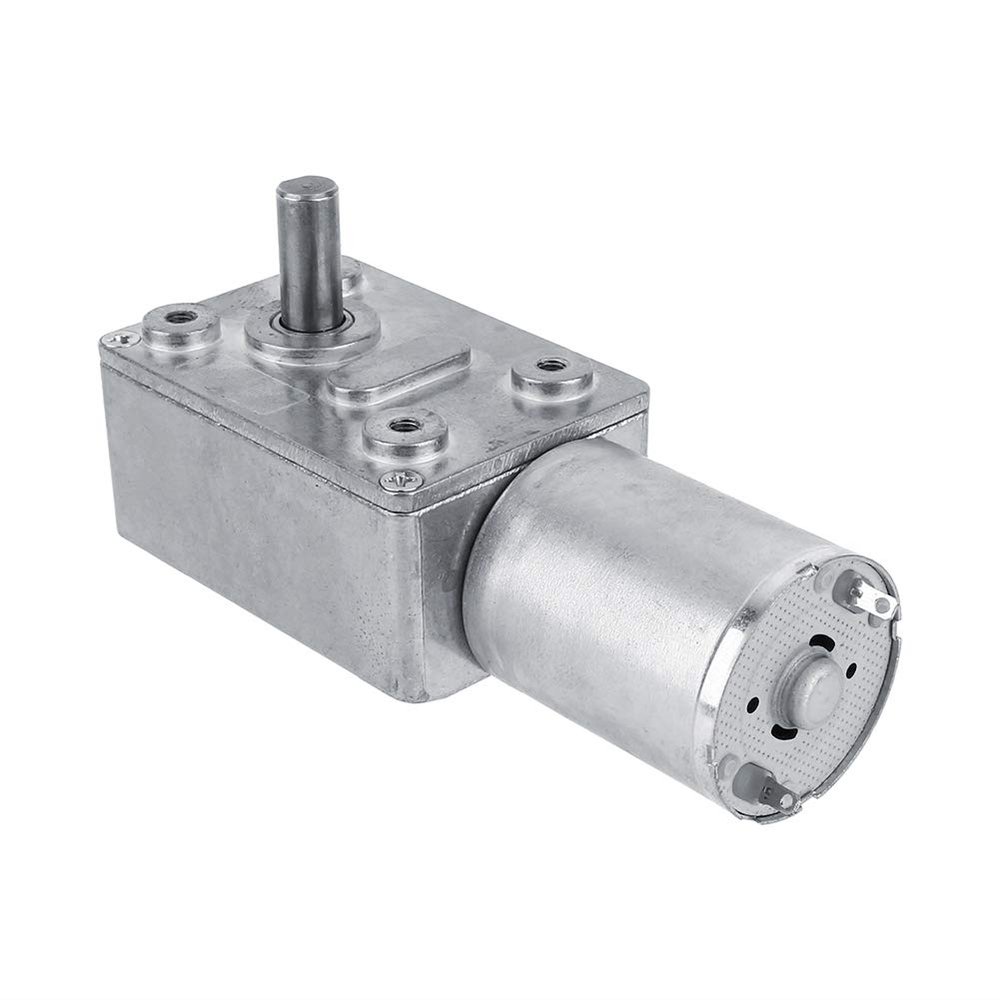

DC 12V Vertical Worm Gear Motor, Non-Self-Locking, 5–62 RPM

Description

• Wide range of applications: Suitable for windows, door openers, mini winches, and other uses.
• Reversible DC 12V worm gear motor.
• No self-locking; easy to install and use.
• Idle speed options: 5, 6, 20, 40, or 62 RPM.
• Vertical arrangement of the motor shaft and gearbox output shaft.
• Suitable for installation requirements involving the overall output-shaft direction.
• Rated torque: 10 kg.

This worm gear motor has a vertically arranged motor shaft and gearbox output shaft, making it suitable for certain installation dimensions and configurations. It is widely used in windows, door openers, miniature winches, and other applications. The motor is not self-locking. Voltage: DC 12V. Selectable idle speeds: 5, 6, 20, 40, or 62 RPM. Specifications by speed: 5 RPM: Stall torque 36.4 kgcm; stall current 0.82 A; no-load current 0.12 A; reduction ratio 1:972. 6 RPM: Stall torque 36.4 kgcm; stall current 0.82 A; no-load current 0.12 A; reduction ratio 1:972. 20 RPM: Stall torque 36.4 kgcm; stall current 0.82 A; no-load current 0.12 A; reduction ratio 1:972. 40 RPM: Stall torque 15 kgcm; stall current 1.15 A; no-load current 0.31 A; reduction ratio 1:224. 62 RPM: Stall torque 16 kgcm; stall current 2.52 A; no-load current 0.41 A; reduction ratio 1:224. Package contents: 1 gear motor.
