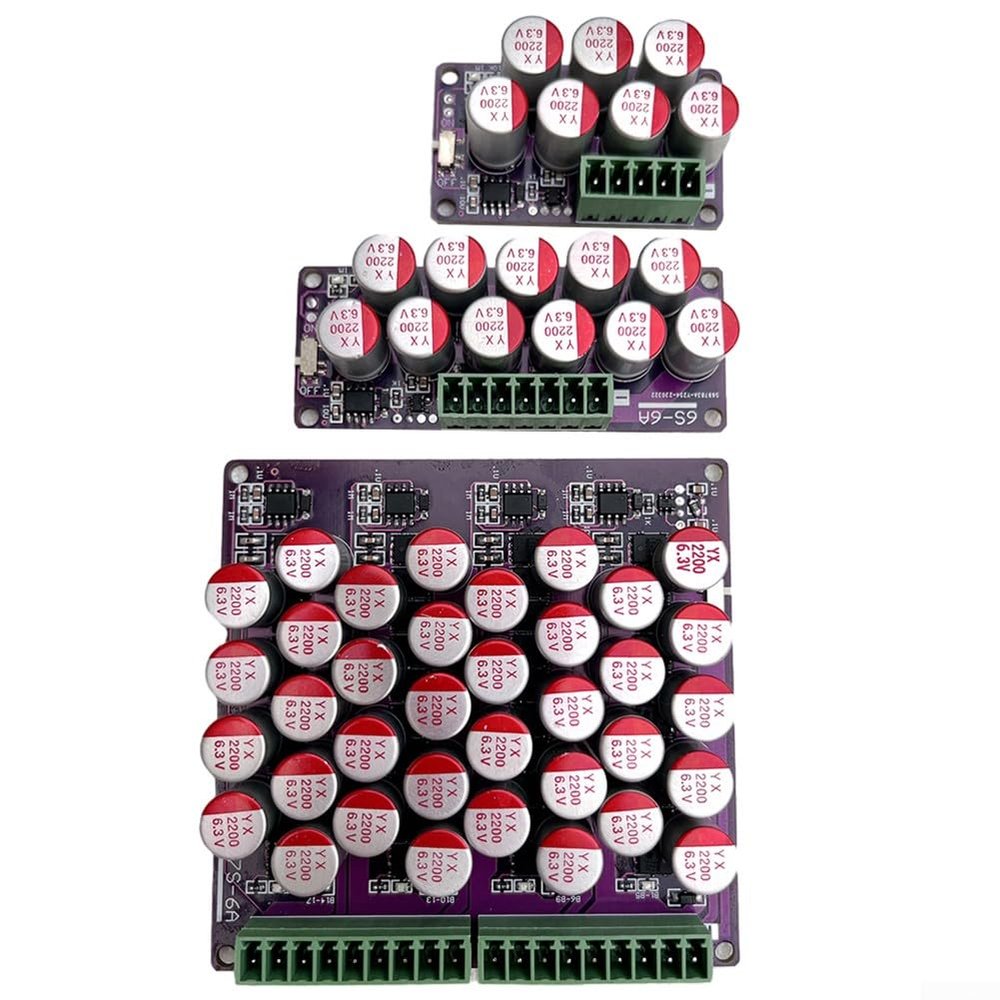

DAZZLEEX 4S/6S/17S Active Equalizer Balancer Board for Li-Ion and LiFePO4 Batteries

Description

• High-current active equalizer with a maximum balancing current of approximately 6 A; greater voltage differences produce higher current.
• High-precision balancing with an accuracy of 0.01 V.
• Available in 4S, 6S, and 17S models for ternary lithium, lithium iron phosphate, and lithium titanate batteries.
• Hybrid balancing transfers energy directly between adjacent capacitors, followed by high-frequency equivalent parallel connection.
• Microcontroller control and low-resistance MOS transistors provide efficient operation with low power consumption.
• Automatic shutdown when cell voltage falls below 2.5 V, plus a manual power-off switch.
• Expandable design allows modules to be reduced, expanded, or cascaded for higher capacity requirements.

Specifications: Model options: 4S/6S/17S. Balancing mode: active energy-transfer balancing. Balancing current: maximum 6 A; the greater the voltage difference, the higher the current, and vice versa. Balancing accuracy: 0.01 V. Power consumption: 1.52.5 mA. Low-voltage protection: automatic shutdown below 2.5 V. Shutdown current consumption: 0 mA. Suitable batteries: ternary lithium, lithium iron phosphate, and lithium titanate. Applicable voltage: 2.54.4 V per unit. Product size: see image. Cable connector: 15EDG-3.81. Supported wire: 1007 18 AWG (0.75 mm), random color. Package contents: 1 main board, 1 connector with 1007 18 AWG (0.75 mm) wire, and multiple wires.
