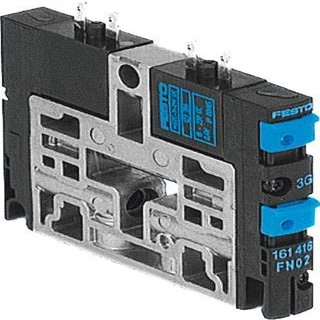

CPV10-M1H-2X3-GLS-K-M7 (553257) Solenoid Valve, 2x 3/2-Way, Closed, Monostable, 4 mm

Description

• Valve function: 2x 3/2-way, closed, monostable
• Actuation: electric
• Valve size: 10 mm
• Normal nominal flow rate: 400 l/min
• Operating pressure: -0.9 to 10 bar
• Design: piston spool
• Reset type: pneumatic spring
• Protection rating: IP65
• Nominal width: 4 mm
• Exhaust function: not throttleable
• Sealing principle: soft seal
• Installation position: any
• Manual override: detenting pushbutton
• Control type: pilot-operated
• Pilot air supply: external/internal
• Flow direction: non-reversible
• Overlap: positive overlap
• Pilot pressure: 3 to 8 bar
• B-value: 0.4
• C-value: 1.60
• Switch-off time: 25 ms
• Switch-on time: 17.0 ms
• Duty cycle: 100% with holding-current reduction
• Electrical power consumption: 0.46 W
• Maximum positive test pulse at 0 signal: 1,400 microseconds
• Maximum negative test pulse at 1 signal: 700 microseconds
• Operating medium: compressed air according to ISO 8573-1:2010 [7:4:4]
• Operating and control medium: lubricated operation possible; lubrication required for continued operation
• Corrosion resistance class KBK: 2, moderate corrosion stress
• Storage temperature: -20 to 40C
• Medium temperature: -5 to 50C
• Ambient temperature: -5 to 50C
• Product weight: 70 g
• Mounting type: through-hole mounting
• Pilot auxiliary air connection 12/14: common connection
• Pilot exhaust connection 82/84: common connection
• Pneumatic connection 1: common connection with pressure separation
• Pneumatic connection 2: M7
• Combined pneumatic connection 3/5: common connection
• Pneumatic connection 4: M7
• Material compliance: RoHS compliant
• Seal materials: HNBR/NBR
• Housing materials: POM, PPS, die-cast aluminum, brass, steel

Electric solenoid valve with a closed, monostable 2x 3/2-way valve function, 4 mm nominal width, and 400 l/min normal nominal flow rate. It is designed for compressed air according to ISO 8573-1:2010 [7:4:4] and has an IP65 protection rating.
