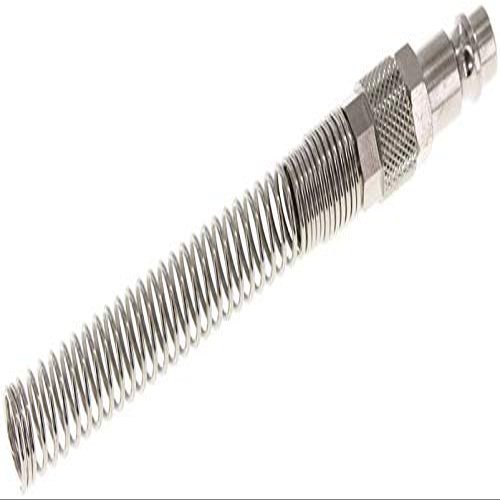

Coupling Plug NW 7.2, 10 x 8 mm Hose with Kink Protection

Description

• Quick-release coupling plug for compressed air
• Nominal width: NW 7.2
• Hose size, outer x inner diameter: 10 x 8 mm
• Material: nickel-plated brass
• Design: rigid
• Both sides shut off: No
• Compatible with Rectus, TEMA, CEJN, JWL, Legris, Parker, Prevost, Festo, IMI-Norgren, Aventics and other German manufacturers
• Optional version with valve for shutoff on both sides: -BA

Materials: housing made of brass, nickel-plated brass, hardened steel or stainless steel 1.4305; seal made of NBR (FKM for stainless steel). Temperature range: -20C to max. +100C (stainless steel: -15C to max. +200C; plastic sleeve: max. +80C). Operating pressure: -0.95 to 35 bar. Flow rate***: standard 1,100 l/min; ball locking: 1,850 l/min; ball locking with plastic sleeve: 2,100 l/min. Each coupling used with a shutoff coupling plug (-BA): 800 l/min. Note: Coupling plugs with a valve for shutoff on both sides (-BA) can only be used with the designated special coupling sockets (-BA). Compatible with Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German manufacturers. Product-specific specifications: nickel-plated brass; hose outer x inner diameter: 10 x 8 mm; shutoff on both sides: no; design: rigid; temperature range: -20C to +200C. ***At 6 bar inlet pressure and 0.5 bar pressure differential. **Names and designations are partly registered trademarks of their respective manufacturers.
