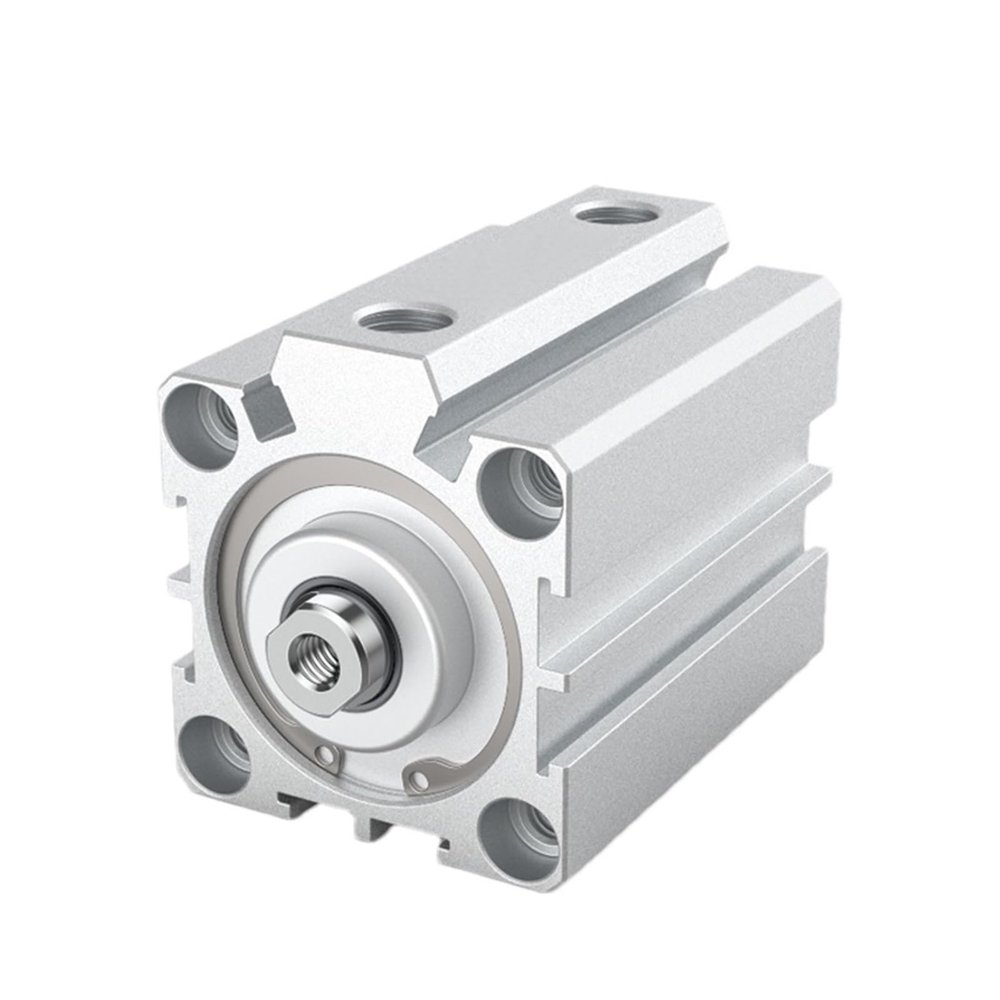

Compact Thin SDA16 Pneumatic Air Cylinder, Double-Acting, 16 mm Bore, 60 mm Stroke

Description

• High-quality aluminum-alloy construction for durability and lightweight performance
• Available in bore sizes from 16 mm to 100 mm for different applications
• Double-acting design enables efficient extension and retraction
• Compact, slim profile for installations with limited space
• Various stroke options from 5 mm to 100 mm

Operating principle: The piston receives the thrust or tension generated by air pressure. This force acts directly on the piston rod connected to the piston, causing the rod connected to the load workpiece to move back and forth. Product features: 1. Made of high-quality aluminum, the air cylinder is strong, resistant to deformation, durable, and long-lasting. 2. Strong impact resistance: The thicker base provides strong impact resistance, making the cylinder more stable during operation and safer to use. 3. Excellent sealing ring: The high-quality sealing ring helps prevent piston leakage and improves sealing performance. 4. The self-lubricating bearing allows the piston rod to operate without lubrication. 5. Commonly used in automated equipment in the light, chemical, textile, electronics, and mechanical engineering industries. Package includes: - 1 x SDA pneumatic cylinder - 2 x 8 mm PC fittings (contact customer service if you need to change to PC fittings of another size) - 1 x Teflon tape Specifications: - Type: Cylinder - Model numbers: SDA16/20/25/32/40/50/63/80 mm - Product name: Compact cylinder - Action type: Double-acting - Fluid: Air, filtered through a 40-micron filter element - Operating pressure: 0.20.8 MPa - Bore sizes: SDA16/20/25/32/40/50/63/80 mm - Stroke: 550 mm - Test pressure: 1.32 MPa - Material: Aluminum alloy - Cushion type: Bumper - Stroke tolerance: 1 - Speed range: 30500 mm/s - Port sizes: M5 0.8, 1/8", 1/4", 3
