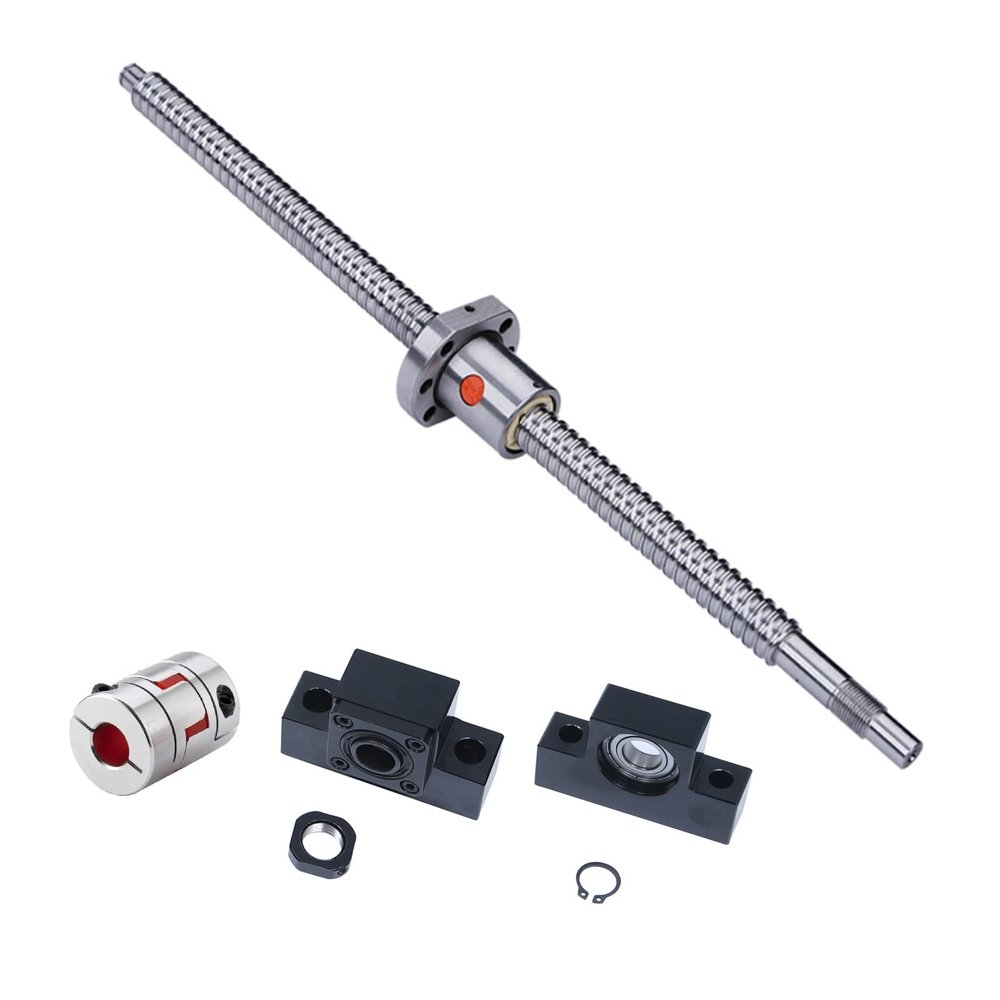

Coavoo SFU2010 2300 mm Ball Screw, C7, 10 mm Lead, with EK15/EF15 Supports and 8 × 12 mm Coupling Kit

Description

• Includes 1 rolled ball screw with ball nut; total length: 2300 mm
• C7 accuracy class; screw diameter: 20 mm; pitch: 5 mm; lead: 10 mm
• Includes EK15/EF15 supports and an 8 12 mm coupling kit for CNC applications
• Standard coupling bore for the motor shaft: 8 mm; other sizes can be customized
• Precision thread design, high positioning accuracy, and excellent anti-backlash performance
• Smooth, durable surface with reduced stick-slip, heat generation, and starting torque
• Suitable for high-speed operation and micro-feeding; high static and dynamic rigidity
• Technical support available before, during, and after purchase

Brand: Coavoo. Manufacturing process: rolled thread. Accuracy: C7. Material: GCr15 steel. Model: SFU2010. Custom processing and technical support: Any desired length can be supplied. End machining according to technical drawings is available if requested before ordering. CAD drawings and 3D model files can be provided upon request. All products include lifetime technical support. Ball screw maintenance: Keep the ball screw properly lubricated and clean at all times. Before applying lubricant, whether grease or oil, ensure that the ball screw is thoroughly clean and dry. We recommend lubricating ball screws under normal loads every six months and those under high loads every three months. The appropriate lubricant depends on the operating conditions: machine oil or low-viscosity grease is suitable for light loads and high speeds; NLGI-1 or NLGI-2 grease is suitable for medium loads and speeds; high loads may require grease with an EP2 additive.
