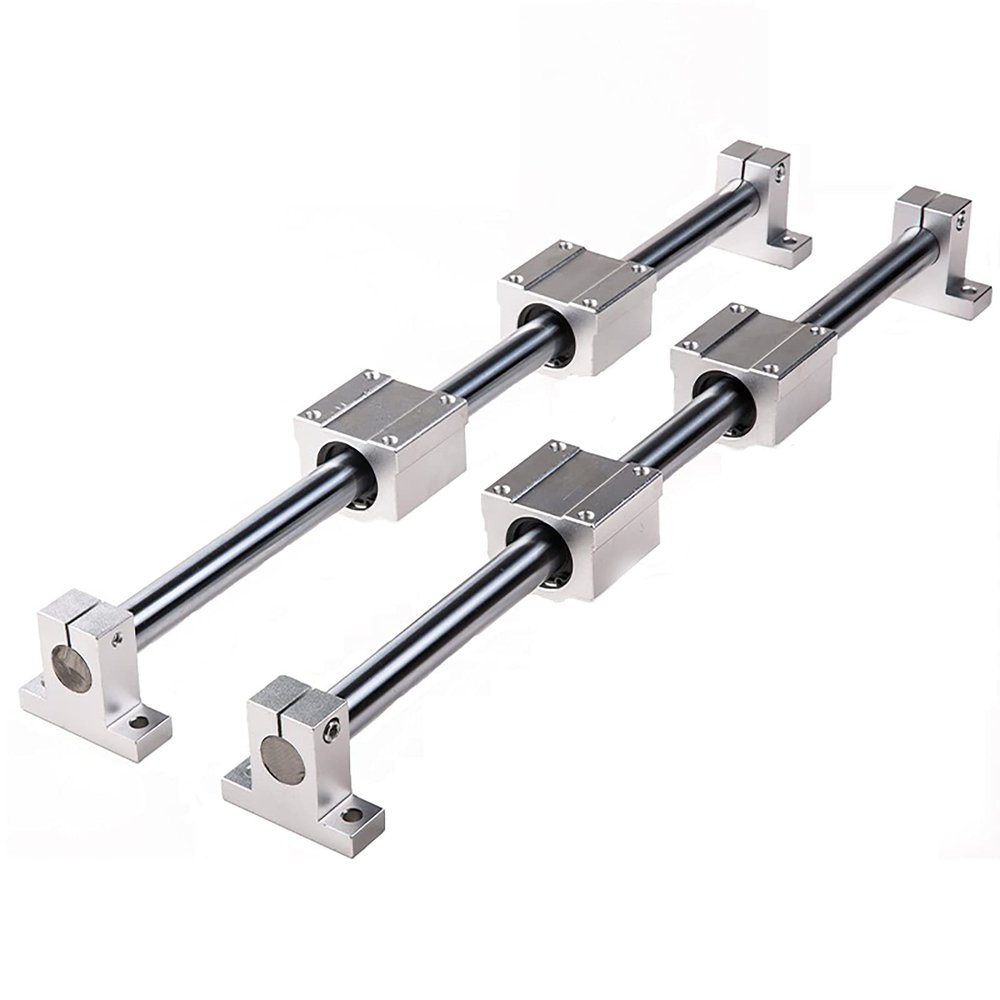

Coavoo 2 x 25 mm x 1750 mm Linear Shafts with 4 SCS25UU Bearings and 4 SK25 Supports

Description

• Diameter: 25 mm; length: 1750 mm
• Includes 2 chrome-plated linear shafts, 4 aluminum SK25 shaft supports, and 4 SCS25UU bearing blocks
• Tolerance: metric h8; hardness: approx. HRC 5864; hardening depth: 0.82.5 mm
• Straightness: 0.1/1000 mm; chrome thickness: 0.0150.02 mm; roundness: no more than 3 m
• Made from high-quality C45 steel with high-frequency hardening and surface chrome plating of 1520 m
• Chamfered at both ends to facilitate linear-bearing installation and help protect fingers during installation
• Custom lengths and end machining are available; other shaft diameters include 5, 6, 8, 10, 12, 13, 14, 16, 20, 25, 30, 35, 40, and 50 mm

Specifications: Brand: Coavoo Material: High-quality carbon steel (C45) Hardness: HRC 5864 Surface hardening depth: 0.82.5 mm Surface roughness: 0.8S1.6S Straightness: under 5 m/100 mm Surface chrome thickness: 1520 m Surface finish quality: Ra 0.8 Package includes: 2 x 25 mm x 1750 mm linear shaft rods, 4 x aluminum SK25 fixed shaft supports, and 4 x SCS25UU column-block bearings. Please note: - Customized services are available. Please let us know your requirements. - The shaft ends can be machined according to your requirements; examples are shown in image 7.
