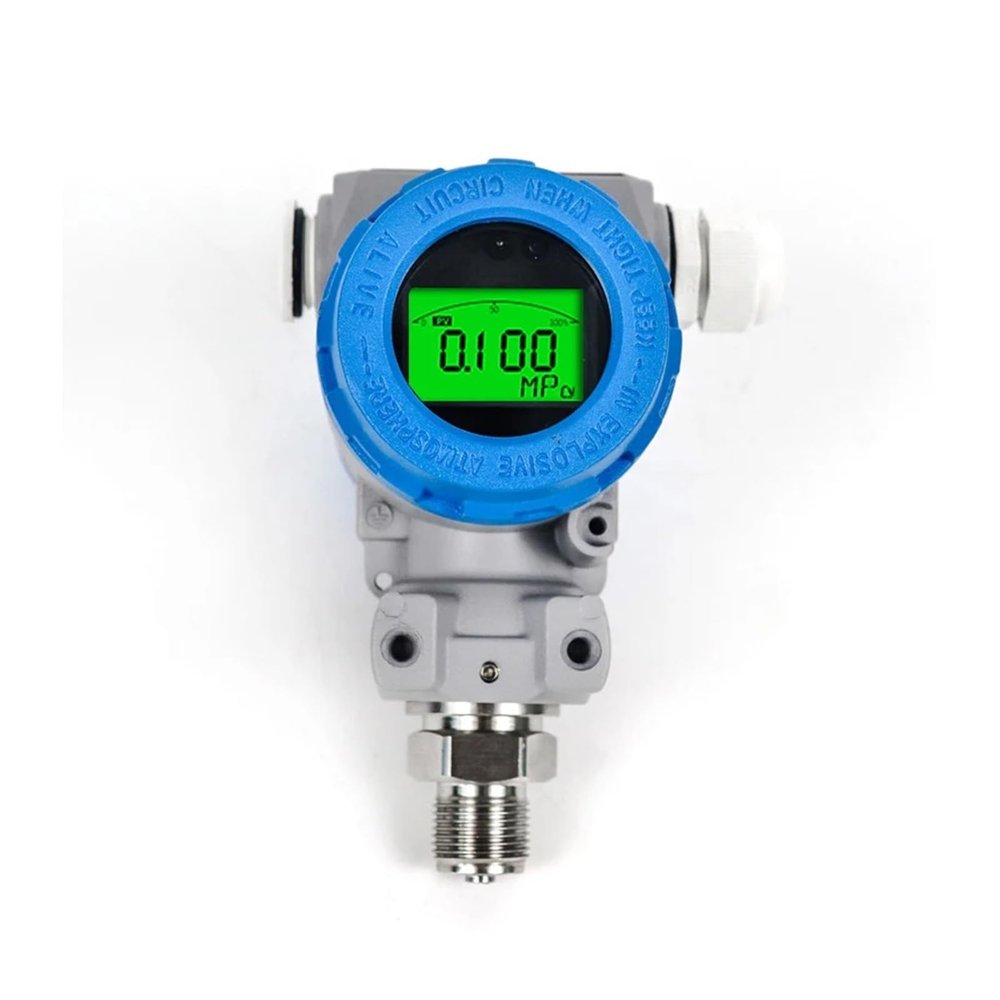

CLBSWYEJK LED Digital Pressure Transmitter, 4–20 mA, Diffused Silicon, 0–100 MPa, Stainless Steel (No Display, 0–10 V)

Description

• Model: HDP800
• Maximum measuring range: 400 bar and above
• Output signal: 420 mA, 15 V, 010 V, RS485, etc.
• Power supply: 1228 VDC
• Measuring medium: Oil, water, gas
• Pressure range: 0100 MPa
• Enclosure protection: IP65
• Accuracy: 0.1% FS, 0.2% FS
• Long-term stability: 0.2% FS/year
• Linearity: 0.03%
• Overpressure: 200% FS
• Load capacity: 500
• Response time: 50 ms

The HDP800 pressure transmitter is designed for measuring oil, water, and gas. It has a 0100 MPa pressure range, IP65 enclosure protection, 1228 VDC power supply, and supports output signals including 420 mA, 15 V, 010 V, and RS485.
