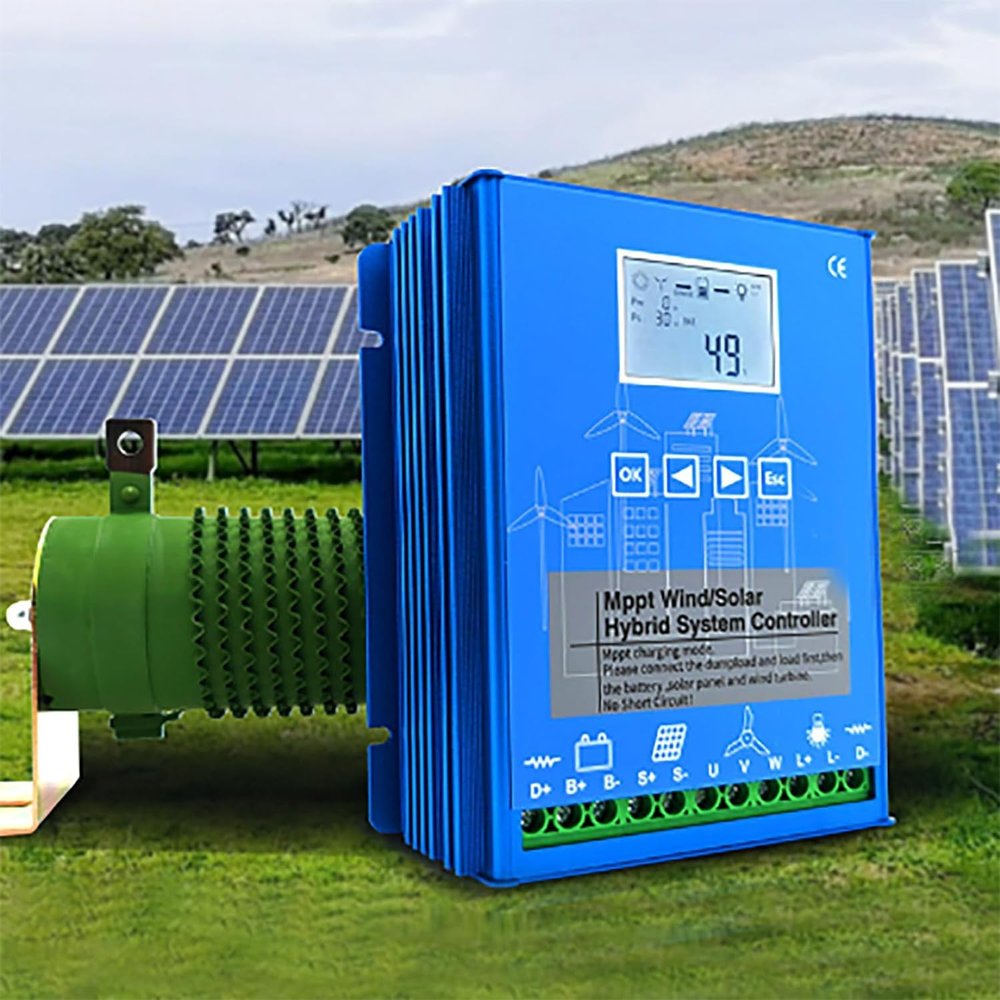

CHRISK 10000W Renewable Energy Controller for Off-Grid Wind-Solar Hybrid Systems, 24V

Description

• Compatible with 12V, 24V, and 48V batteries, including lithium batteries
• For wind generators and solar panels in off-grid homes, boats, and streetlights
• Wind turbine charging with boost MPPT technology for low-wind conditions
• Stepless discharge function with external dump-load resistors
• Solar charging uses PWM technology with MOSFETs in series
• Adjustable battery parameters with stable charging-voltage control
• Large LCD display for wind, solar, load voltage, and current
• Two DC load outputs with four selectable output modes
• Protection against reverse charging, overvoltage, undervoltage, overload, battery reverse connection, idling, and lightning

Specifications:
System rated voltage: 12V / 24V / 48V

The three parameters above must meet the following conditions:
(Wind power + photovoltaic power) / system voltage: 40A
Wind power / system rated voltage: 25A
Photovoltaic power / system voltage: 25A
No-load current (DC): 0.05A
Controller power supply mode: battery or photovoltaic panel

Product size: 167 145.5 61.8 mm / 6.57 5.73 2.43 in
Package size: 360 250 120 mm

Package includes:
1 wind-solar hybrid controller

This wind-solar hybrid streetlight controller is designed for small off-grid systems in which wind generators and solar panels charge batteries. It features an MPPT boost charging function for the wind generator. The LCD provides expanded information, a clear display interface, and button controls for operation and configuration. Some parameters can be adjusted by the user.

Dual power supply: battery or solar power.

Selectable operating modes: pure light-control mode, normal open mode, and light-control timer mode with four morning-light periods.
