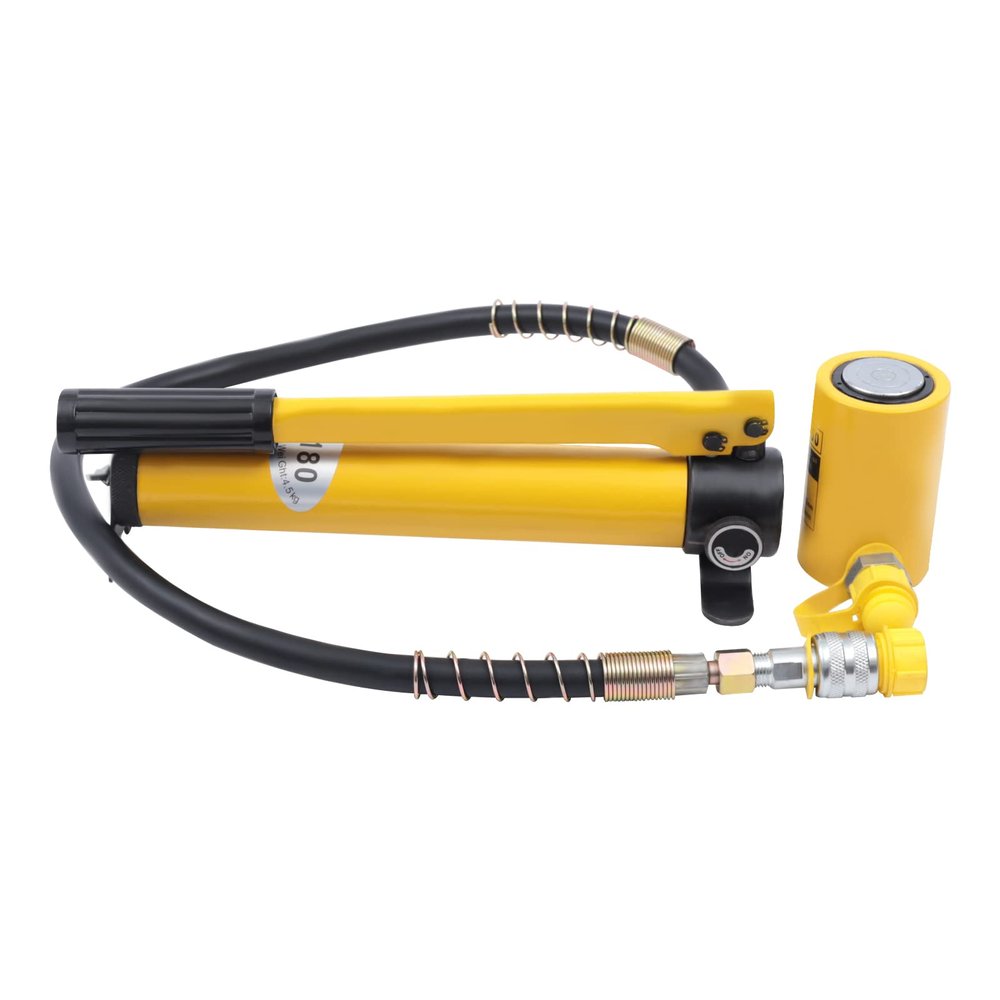

CHENYN 10T Hydraulic Jack with CP-180 Hand Pump

Description

• Technical parameters: RSC-1050 jack, CP-180 pump, 10 t capacity, 5 cm lift, 10.2 cm closed height, 15.2 cm extended height, 14 7.5 10 cm size, and 72 cc oil capacity.
• Easy to use: Functions include lifting, jacking, pushing, and splitting. The ZG3/8 quick coupling has an internal steel ball to help prevent oil backflow; connect the jack and pump and operate the control knob on the pump head.
• Durable construction: Painted hydraulic-cylinder surface, sturdy metal construction, stop ring to help protect against breakage under load, and a dust-resistant jack sleeve.
• Wide range of applications: Suitable for power, chemical, steel, bridge, railway-vehicle maintenance, mechanical installation, and construction-support applications.
• Portable design: The detachable jack and pump are easier to carry and provide a smaller size with high working capacity, especially in confined spaces.

Specifications for the 30-ton hydraulic jack and hand pump: Color: black, yellow, and silver. Material: steel. Quick-coupling thread: ZG3/8. Hydraulic hose material: rubber. Gross weight: 16.5 kg (36.3 lb). Package size: 64 19 18.5 cm (25.1 7.4 7.2 in). Jack model: RSC-3050. Capacity: 30 t (66,138 lb). Lift, adjustable height: 50 mm (1.9 in). Jack height: 105 mm (4.1 in). Extended jack height: 155 mm (6.1 in). Jack diameter: 104 mm (4.09 in). Oil capacity: 210 cc. Jack weight: 5.5 kg (12.1 lb). Pump model: CP-700. Pump oil capacity: 700 cc. Maximum pump pressure: 70 MPa. Minimum pump pressure: 7 MPa. Pump weight: 10.5 kg (23.1 lb). Use: 1. Connect the hand pump's quick connector to the jack. 2. Position the jack and tighten the hydraulic pump's release screw clockwise. 3. Move the handle up and down. 4. Stop pumping when the stop line on the spindle is visible. 5. Loosen the hydraulic pump's oil-release screw counterclockwise. Package contents: 1 hydraulic jack and 1 pump. Notes: Keep the load-bearing surface hard and level. Do not exceed the rated capacity or lift, as this may damage the cylinder. This product is intended only for railway-vehicle maintenance, machine installation, construction support, and similar applications, not for personal vehicles. Hydraulic oil is not included and must be purchased separately. Stop immediately when the stop line becomes visible.
