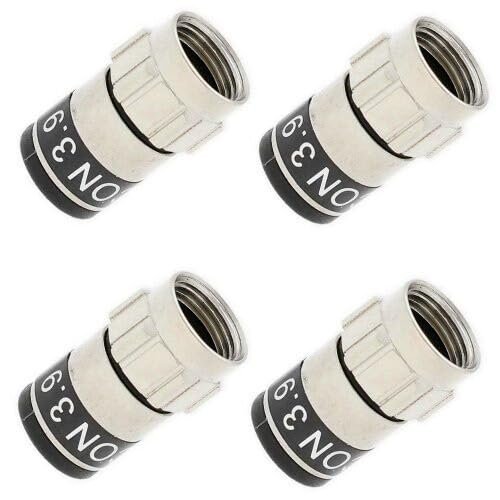

Cabelcon F-59-TD SELF INSTALL 3.9 NI True Drop F Connectors, 6 mm, 4-Pack

Description

• 6 mm
• Cabelcon F-59-TD
• SELF INSTALL
• 3.9 NI True Drop
• Installation in seconds

Cabelcon F-59-TD SELF INSTALL 3.9 NI True Drop F connectors, 6 mm. Cabelcon self-install F connector with an all-metal construction. For coaxial cables with approximately 3.63.7 mm dielectric and 5.76.2 mm outer diameter. The Cabelcon self-install compression connector is a unique quality product developed, among other purposes, to replace inferior screw-on connectors. Installation is easier and more precise than ever: strip the cable and slide on the connectorthats all. The Cabelcon self-install connector attaches to the cable automatically without tools and cannot be removed afterward. Highlights: - Operational up to 3 GHz - Nickel-coated all-metal construction - Easy and secure installation in seconds - Push-in connector with no loose parts - No compression or special tools required - Fits most standard RG6 cables (3.9) - Professional quality and excellent performance parameters - Simple instructionscan be installed by anyone Self-install technical specifications (typical): - Operational up to 3 GHz - Impedance: 75 ohms - Shielding effectiveness, 301000 MHz: 105 dB - Shielding effectiveness, 1002000 MHz: 95 dB - Shielding effectiveness, 20003000 MHz: 85 dB - Transfer impedance: Class A+ (530 MHz: <2.5 mOhm/m) - Return loss: better than -37 dB, typically -40.2 dB - IMD (3rd order at 2 100 mW): -143 dBc - Maximum current load: see cable specifications - Maximum tensile strength (overall): 167 N 2-year warranty.
