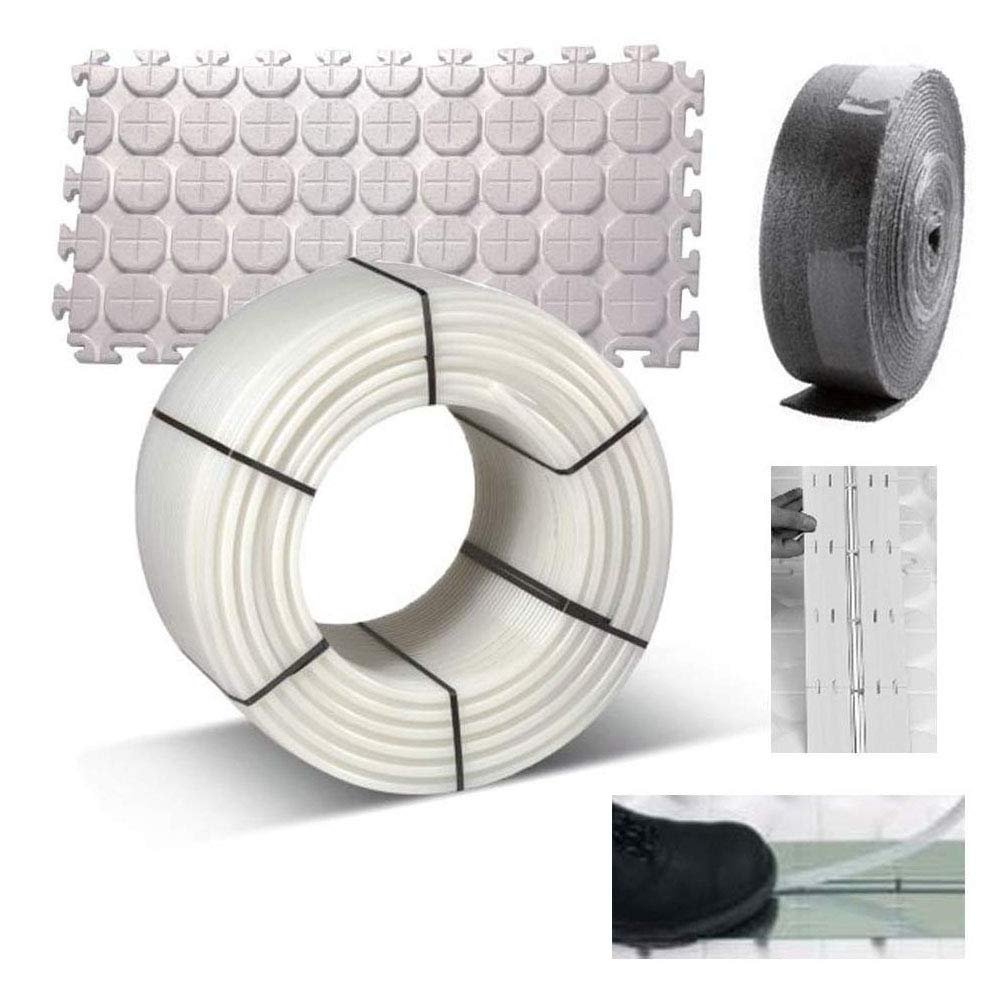

Buderus Schütz Underfloor Heating Package, Dry Construction, H = 25 mm, for Dry Screed (23.76 m²)

Description

• 23.76 m dry-construction system panels: 4003959
• 240 m Schtz duo-flex heating pipe, 14 x 2 mm: 3006737 / 306768
• 210 Schtz heat-conducting plates with break points: 3007120
• 1 roll of Buderus perimeter insulation strip: 81501404
• Thermal resistance: 0.56 mK/W

The SCHTZ dry-construction system panelthe solution provider. Foamed polystyrene system panel with a minimal installation height for wet and dry screeds. In dry-construction systems, the heating pipes are installed in heat-conducting modules within the thermal insulation. These heat-conducting modules ensure even heat distribution. Because of the low installation height required for the insulation and heating pipe, dry-construction systems have proven particularly effective when retrofitting underfloor heating. Advantages of the dry-construction system: - Fast, continuous installation of the entire floor assembly - No waiting time for screed to dry - Low structural weight - Secure connection between panels using tongue-and-groove technology - Easy, waste-free installation for any room geometry using cross joints or continuous installation - Optimized heat output through even surface temperatures with spiral-pattern installation - Compact dimensions: 606 x 1,181 mm - Net area: 0.66 m - When using dry screeds, preferably use with 14 mm heating pipe Description of the dry-construction system panel: - Underfloor heating system suitable for existing buildings, new construction, and prefabricated construction with dry and wet screed installation - Only 14 x 2 mm pipe dimensions can be used - Profiled panel made of rigid polystyrene foam - Pipe-routing grooves for heat-conducting modules with heating pipe, arranged in serpentine or spiral patterns; installation spacing in an 11.5 cm grid - Thermal resistance: 0.56 mK/W - Impact-sound improvement rating: 0 dB * - Building material class: B1 - Panel thickness: 25 mm - Panel dimensions: 606 x 1,181 mm - Compressive load, wet screed: 5 kN/m - Compressive load, dry screed: 2 ** / 4 *** kN/m - Article number: 4003959
