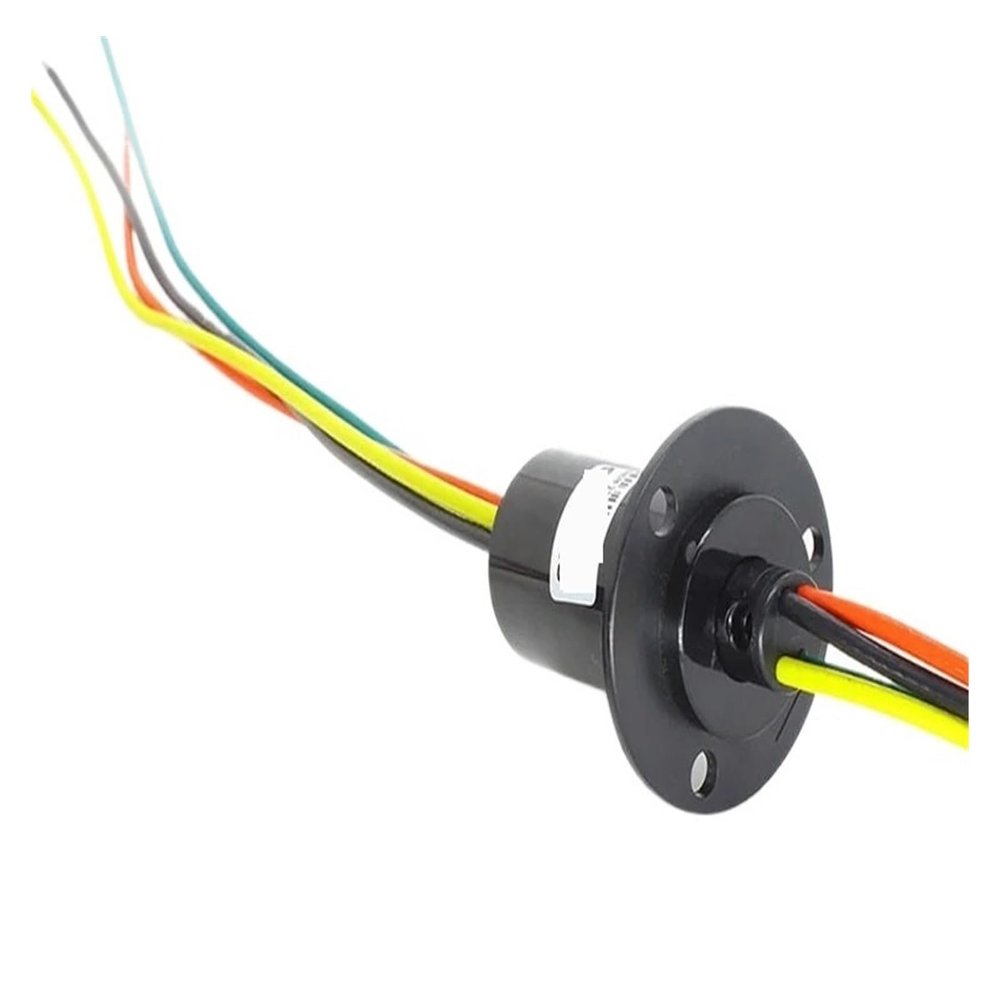

BADIKA Rotary Electrical Slip Ring, 22 mm, 3-Channel, 10 A

Description

• Easy to install and maintain; lightweight and compact.
• Resistant to low temperatures, with a wide operating temperature range.
• Stable signal transmission with interference resistance.
• Wear-resistant, pressure-resistant, heat-resistant, and aging-resistant.
• Long service life.

Slip rings and rotary joints are used in equipment where power and signals must be transmitted during rotation. Available bore sizes range from 3 mm to 300 mm, with 2 to 300 circuits. They support unlimited 360-degree rotation for image and data transmission. Features include low noise, long service life, low torque, smooth operation, extremely low dynamic resistance variation, compact size, and a compact design. Specifications: Speed: 250 rpm Number of channels: 424 channels Rated voltage: 240 VAC/DC Rated current: 10 A/30 A Operating temperature: -30 to +80 Contact material: Gold Wire size: AWG12, AWG17, silver-plated, UL Cable length: Standard 150 mm Withstand voltage: 300 V, 50 Hz between the two channels Insulation resistance: 300 M/300 VDC Dynamic resistance variation: Minimum 10 m Housing material: Engineering plastics Service life: 5 million rpm, depending on the operating environment and speed Package contents: 1 slip ring. Installation example for mounting a slip ring on a robot: 1. Mount the flange onto the robot shaft. 2. Connect the cables to the equipment. 3. Secure the stator with screws to the stationary part of the equipment.
