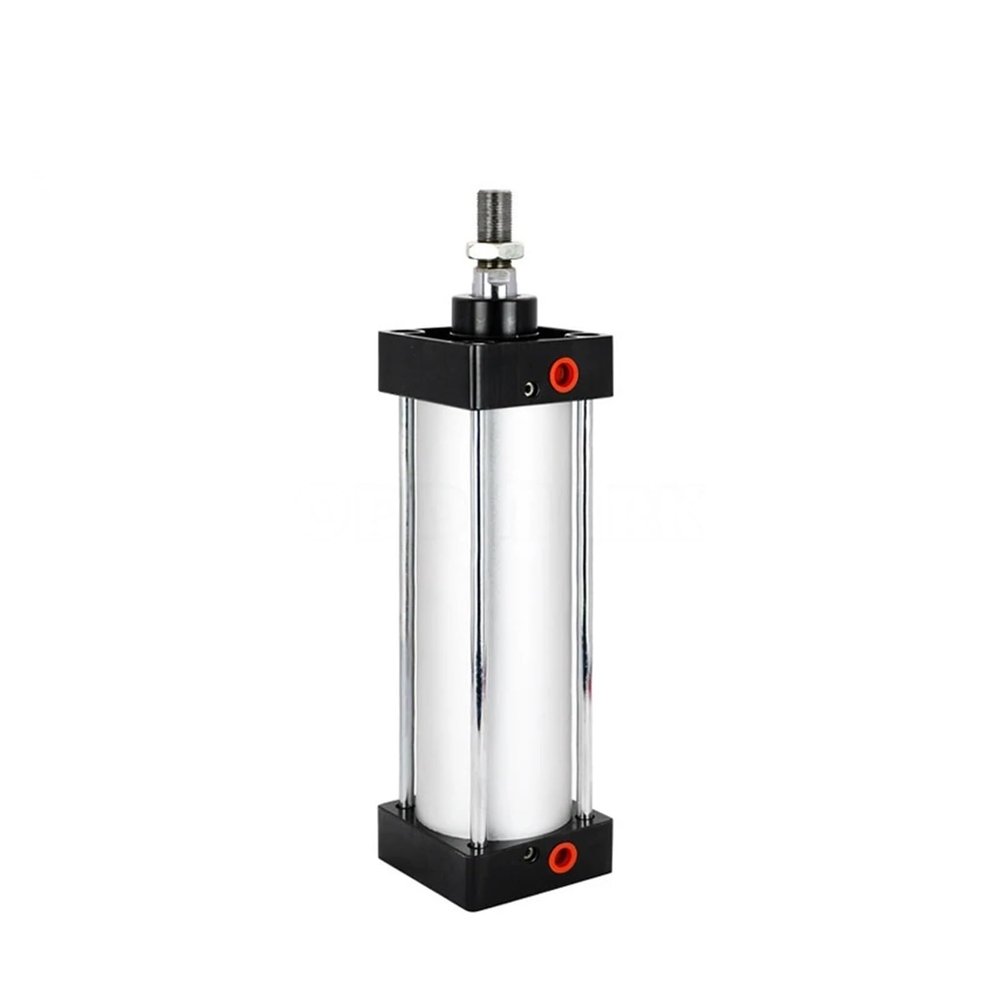

AYJYZHIAG SC Standard Air Cylinder, Double-Acting, 80/100/125 mm Bore, 25–1000 mm Stroke

Description

• Standard cylinder manufactured by our company.
• Piston seal with a compact bidirectional sealing structure and grease-retention function.
• Tie-rod cylinder with the cylinder tube and front/rear caps securely connected by tie rods.
• Smooth and uniform cylinder cushioning adjustment.
• Multiple cylinder and mounting accessory specifications available.

Installation and application: 1. If the load changes during operation, select a cylinder with sufficient output capacity. 2. Select a cylinder with suitable high-temperature or corrosion resistance for high-temperature or corrosive conditions. 3. In environments with high humidity, heavy dust, water droplets, oil mist, or welding residue, take the required protective measures. 4. Remove contaminants from the piping before connecting it to the cylinder to prevent particles from entering the cylinder. 5. Filter the medium used by the cylinder to 40 m or less. 6. In low-temperature environments, take antifreeze measures to prevent moisture from freezing. 7. Perform a no-load test run before use. Before operation, set the cushion to its minimum and gradually release it to prevent cylinder damage from excessive impact. 8. Avoid side loads during operation to maintain normal cylinder function and extend service life. 9. If the cylinder is disassembled and stored for an extended period, apply surface rust protection and install dust caps on the air inlet and outlet ports. Type: Cylinder Model number: SC80/100/125 Product name: Standard cylinder Action type: Double-acting Fluid: Air Bore: 80 mm, 100 mm, 125 mm Stroke: 251000 mm Range: 0.10.9 MPa Proof pressure: 1.35 MPa Material: Aluminum alloy The source title also lists stroke options of 100, 75, 100, 125, 150, 175, 200, 250, and 300 mm, as well as a 400 mm stroke with a 100 mm bore.
