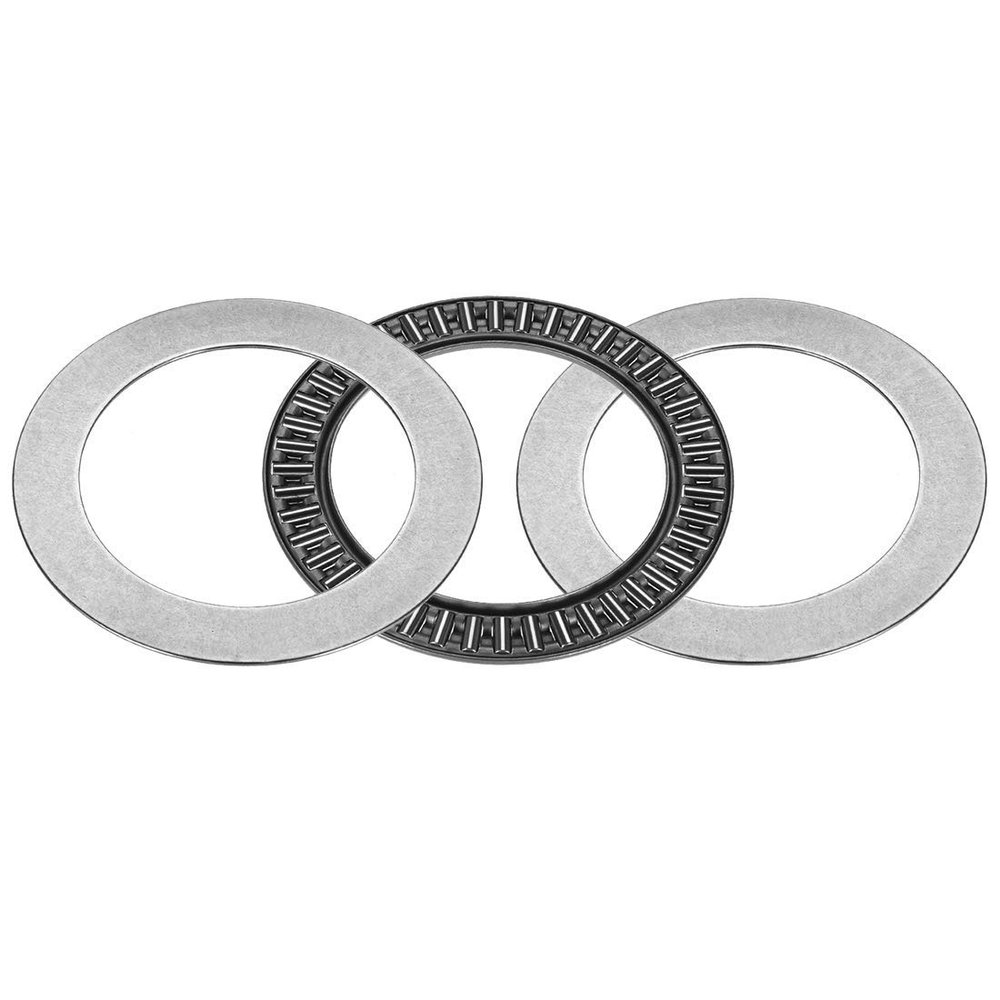

AXK5578 2AS Needle Thrust Bearing with 2 Washers, 55 mm ID, 78 mm OD, 5 mm Thick, GCr15 Steel

Description

• AXK5578 size: 55 mm inner diameter, 78 mm outer diameter, 5 mm thick.
• Designed for high axial loads, meaning loads parallel to the shaft.
• High-quality rollers and a matching cage help reduce friction, vibration, and noise.
• Hardened chrome steel rollers provide heat resistance and durability under heavy loads.
• For mounting or rebuilding a milling machine, tower, or other equipment.

These needle roller thrust bearings provide a high level of rigidity in minimal axial space. They have a smaller cross-section than standard thrust bearings for use in confined spaces. They are suitable for heavy axial and peak loads due to the small variation in roller diameter within a single assembly. AXK thrust bearings can be combined with AS-series washers in applications where adjacent components cannot be used as raceways. Made from hardened spring steel, both sides of the washers are polished and can be used as raceways. Bearings are used in a range of applications, including agricultural machinery, equipment transport, robots, elevators, laminating equipment, ship steering wheels, and granule grinding. Specifications: Model: AXK5578 with 2 washers. Roller material: chrome steel (GCr15). Cage material: ST13 steel. Bearing washer material: 65Mn spring steel. Inner diameter: 55 mm. Outer diameter (D): 78 mm. Total thickness: 5 mm. Dynamic load rating (Cr): 11.2 kN. Static load rating (Cor): 35.5 kN. Maximum speed: 11,000 rpm. Total weight: 62 g. Package contents: 1 piece.
