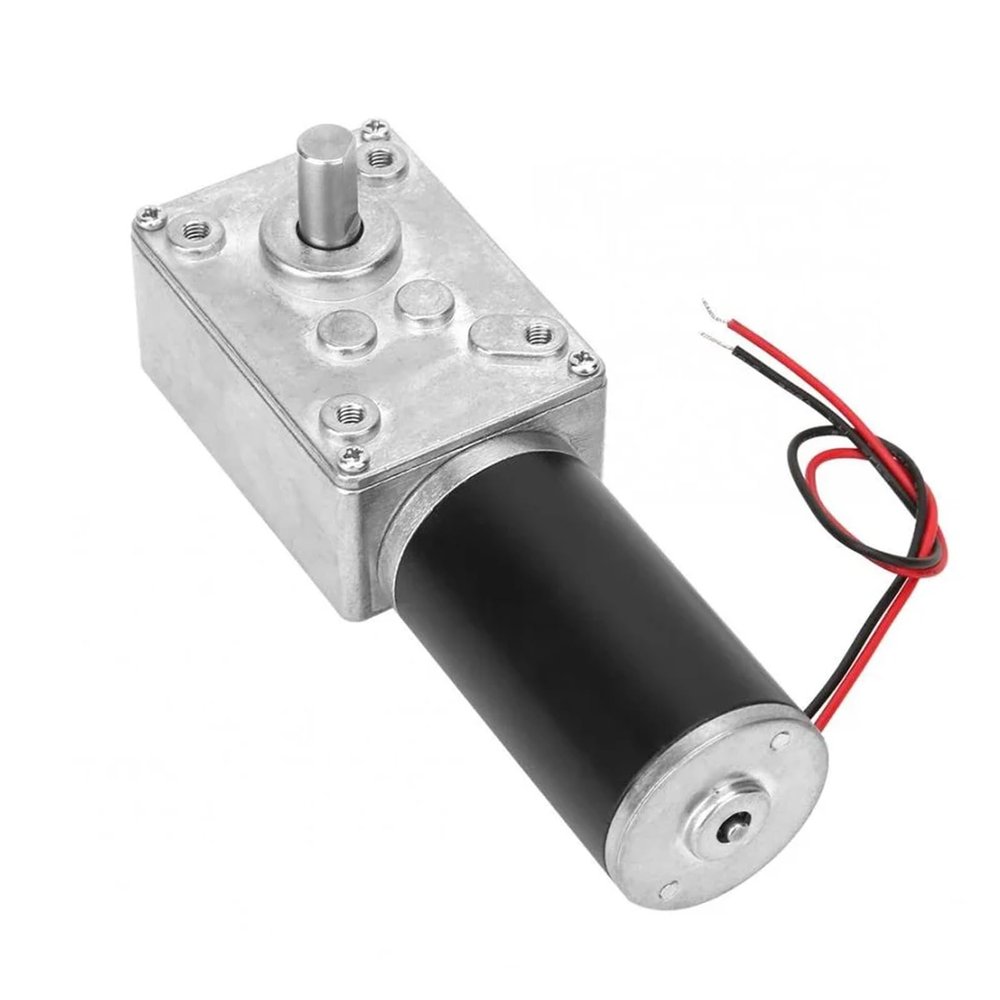

Automatic Sliding Gate Opener, DC 12/24 V Worm Gear Motor, High Torque, D-Shaft, 8 mm Shaft

Description

• Made from high-quality, durable materials.
• 31 mm copper motor with compact size and high torque.
• Ball-bearing design improves shaft wear resistance.
• All-metal gears are impact-resistant, durable, and low-noise.
• Generally used in curtain machines, advertising equipment, window openers, and smart devices.

Specifications: Rated voltage: DC 12 V / 24 V No-load speed: 7 rpm, 10 rpm, 12 rpm, 16 rpm, 27 rpm, 40 rpm, 80 rpm, 160 rpm, 260 rpm, 470 rpm Maximum power: 5 W Maximum torque: 70 kgcm Shaft diameter: 8 mm, D-type Shaft length: 15 mm Torque: Torque units: 1 Nm = 10 kgcm = 0.1 kgm Torque = force perpendicular to the lever arm lever arm Example shown on the left: Lifting a drum with a drum radius and lever arm of 10 cm and a load of 5 kg. Required torque = 5 kg 10 cm = 50 kgcm. Example shown on the right: Lifting a drum with a drum radius and lever arm of 5 cm and a load of 5 kg. Required torque = 5 kg 5 cm = 25 kgcm.
