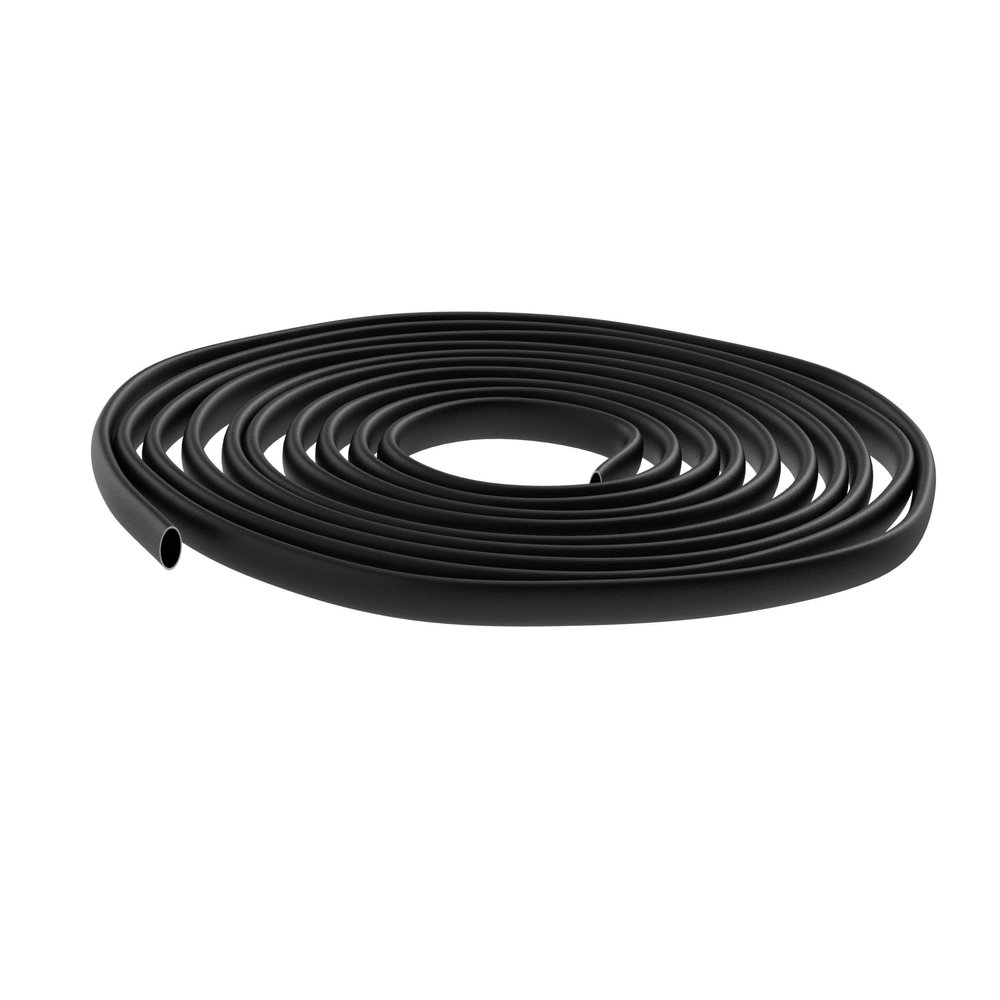

AUPROTEC Black Heat-Shrink Tubing, 3.8 mm ID, 5 m

Description

• Polyolefin heat-shrink tubing, black, UL approved
• Flexible cable protection with excellent physical, chemical, and electrical properties
• Material: radiation-crosslinked polyolefin; shrink ratio: 2:1
• Operating temperature: -55C to +125C; shrink temperature: min. 90C
• Type 1/7 in: supplied inner diameter min. 3.8 mm; recovered diameter max. 1.9 mm
• Nominal wall thickness after shrinking: 0.50 mm
• Contents: 1 x 5 m AUPROTEC heat-shrink tubing, type 1/7 in

AUPROTEC insulation heat-shrink tubing, sold by the meter or in coils, made in Germany and UL approved (UL 224). This high-quality, flexible heat-shrink tubing is made of polyolefin and offers excellent physical, chemical, and electrical properties. Technical data: shrink ratio 2:1; material: radiation-crosslinked polyolefin; operating temperature: -55C to +125C (UL 224); shrink temperature: min. 90C; longitudinal shrinkage: max. 5% (ASTM D2671); tensile strength: >10.4 MPa (ASTM D638); elongation at break: >200% (ASTM D638); tensile strength after heat aging: >7.3 MPa (ASTM D638); elongation at break after heat aging: >100% (ASTM D638); dielectric strength: >20 kV/mm (UL 224, AC 2500 V, 1 min); volume resistivity: 10 x cm (ASTM D2671); flame-retardant, UL 224 VW-1; standard color: black. Available sizes, listed as supplied diameter / recovered diameter with nominal wall thickness: 3/64 in: 1.2 / 0.6 mm, 0.45 mm; 1/16 in: 1.6 / 0.8 mm, 0.45 mm; 3/32 in: 2.4 / 1.2 mm, 0.50 mm; 1/8 in: 3.2 / 1.6 mm, 0.50 mm; 3/16 in: 4.8 / 2.4 mm, 0.50 mm; 1/4 in: 6.4 / 3.2 mm, 0.65 mm; 3/8 in: 9.5 / 4.8 mm, 0.65 mm; 1/2 in: 12.7 / 6.4 mm, 0.65 mm; 3/4 in: 19.1 / 9.5 mm, 0.75 mm; 1 in: 25.4 / 12.7 mm, 0.90 mm; 1 1/4 in: 32.0 / 16.0 mm, 0.95 mm; 1 1/2 in: 38.1 / 19.1 mm, 1.0 mm.
