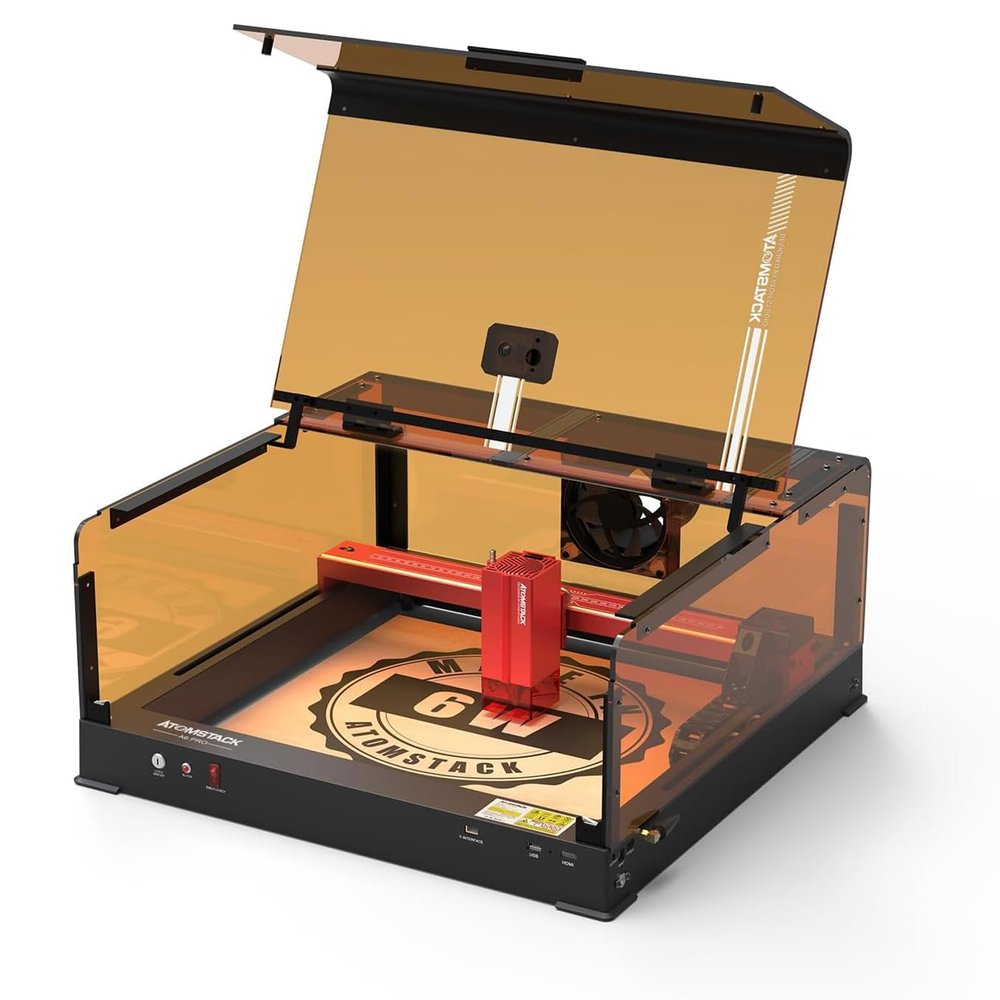

ATOMSTACK A6 Pro Ultra Laser Engraver, 6W Optical Power with B3 Protective Enclosure

Description

• 6W laser power with an ultra-fine 0.05 0.05 mm spot; cuts 3 mm tung wood, black acrylic, and birch plywood in one pass and can engrave mirror-finish stainless steel, ceramics, and glass.
• Stable, fast structure with a one-piece lower frame and dual-guide-rail X-axis design; mechanical frame speed reaches up to 500 mm/s with low vibration.
• New laser module with tool-free focusing and an integrated air-assist system; patented dual-layer air-duct design helps prevent lens clogging and contamination during extended use.
• Second-generation laser-spot compression provides engraving and cutting speeds up to 30% faster than the regular model; maximum cutting thickness is described as comparable to a 90W CO2 laser engraver.
• B3 protective enclosure with LED lighting and a built-in camera for positioning and machine control; the transparent dust-resistant cover lets you monitor operation and helps protect against intense light exposure.

Specifications:
Product model: ATOMSTACK A6 Pro
Engraving area: 370 310 mm
Engraving materials: wood, bamboo, cardboard, plastic, leather, PCB boards, aluminum oxide, non-reflective electroplated layers and colored surface metals, 304 mirror-finish stainless steel, glass, ceramics, cotton fabric, and slate.
Cutting materials: cardboard, nonwoven fabric, wood boards, plywood, acrylic (transparent acrylic requires black coating), some thin plastic sheets, sponge, aluminum, stainless steel, and other metal sheets.
Total power: 40W
Laser output power: 6W
Laser wavelength: 455 5 nm
Engraving accuracy: 0.02 mm
Focusing method: fixed-focus laser; no focusing required
Laser protection cover: The laser has a protective cover to protect the user's eyes, eliminating the need for additional safety glasses. It also helps prevent pets from chasing laser spots.
Operating software: LaserGRBL and LightBurn; supports Windows XP, Windows 7, Windows 8, and Windows 10 systems.
Supported file formats: NC, BMP, JPG, PNG, DXF
Data transfer: USB connection
Power supply: international standard input 100240V AC, 50/60Hz; output 24V 5A
Certifications: CE, FCC, RoHS, FDA, PSE

Package contents:
1 complete frame
1 laser module
1 drag chain
1 mounting screw set
1 tool kit
1 focusing film
3 acrylic sheets
3 wooden discs
10 cable ties
1 desiccant pack
1 brush
1 dust-free cloth
1 power adapter
1 user manual
1 data cable
