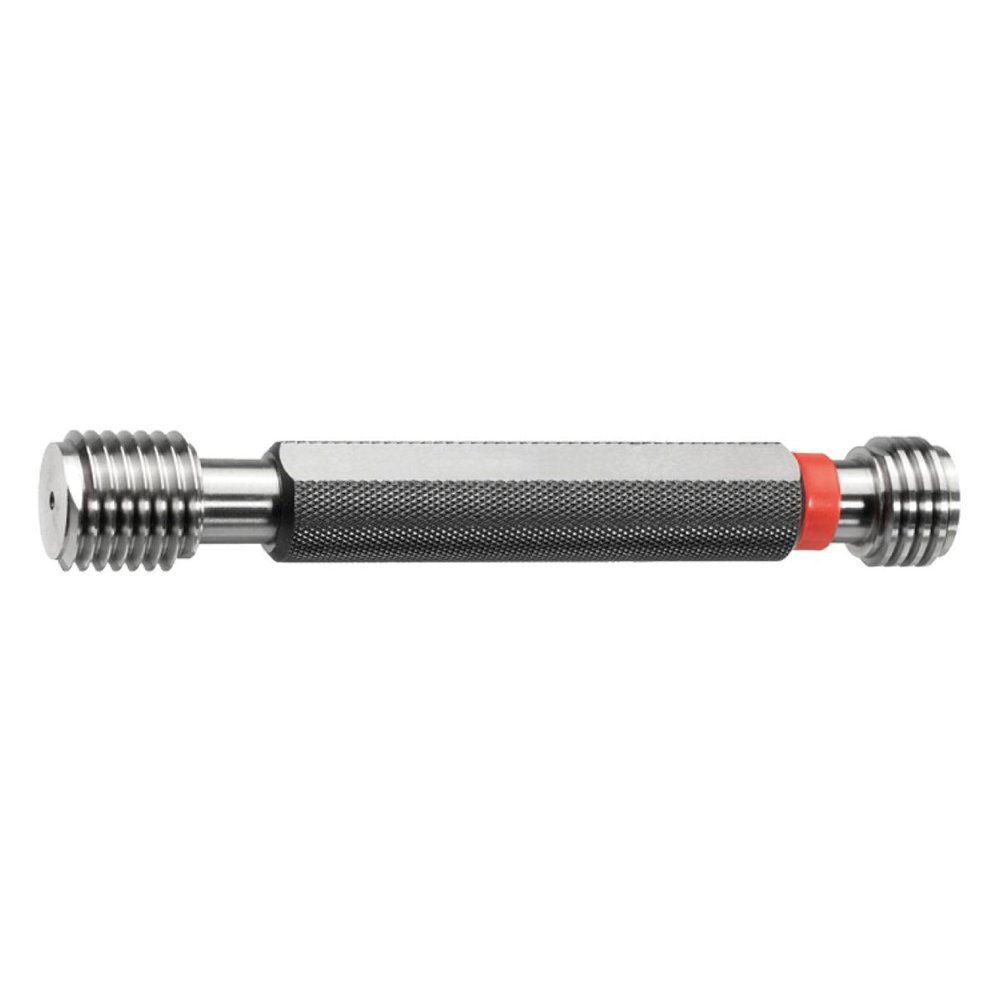

ASIMETO M9 x 1.25 6H Thread Plug Limit Gauge - DIN ISO 1502

Description

• 6H fit: Tests metric coarse-pitch right-hand threads according to DIN 22792299 for reliable production quality control.
• Gauge dimensions according to DIN ISO 1502; the NO-GO side is marked in red.
• High-quality gauge steel with high wear resistance for long tool life and consistent measurement results.
• Manufactured according to DIN standards to meet the requirements of certified quality management systems.
• Up to M52: GO and NO-GO sides on one handle. From M56: split design with separate GO and NO-GO sides.

Thread plug limit gauges made of high-quality gauge steel. Metric ISO coarse-pitch right-hand thread according to DIN 22792299. Gauge dimensions according to DIN ISO 1502. Up to M52: GO and NO-GO sides on one handle (DIN 2240, Part 1, Form R). From M56: split design with separate GO and NO-GO sides. The NO-GO side is marked in red. Application: Thread plug limit gauges consist of a GO side and a NO-GO side, identified by a red ring. The GO side must screw into the workpiece thread by hand without requiring significant force. If this is not possible, the thread does not meet the requirements and is rejected. The NO-GO side may be screwed into the thread by hand by no more than two turns. If it can be screwed in farther, the thread also does not meet the specified tolerances and is rejected. The reference temperature for workpieces and gauges is 20C.
