Annadue DSO152 Handheld Digital Oscilloscope, Auto Set, 2.5 MS/s, 200 kHz, 2.8-Inch LCD, Standard Blue

Description

• Auto Set automatically adjusts the time base and voltage to provide a stable, clear waveform.
• The 2.5 MS/s real-time sampling rate captures rapidly changing signal transients and disturbances.
• The 200 kHz analog bandwidth and 2.8-inch color LCD provide clear signal and waveform viewing.
• The compact, lightweight design fits easily in a tool bag or shirt pocket, with USB Type-C charging and data transfer.
• Suitable for automotive circuit testing, microcontroller projects, electronics education, DIY learning, workshops, laboratories, and field service.

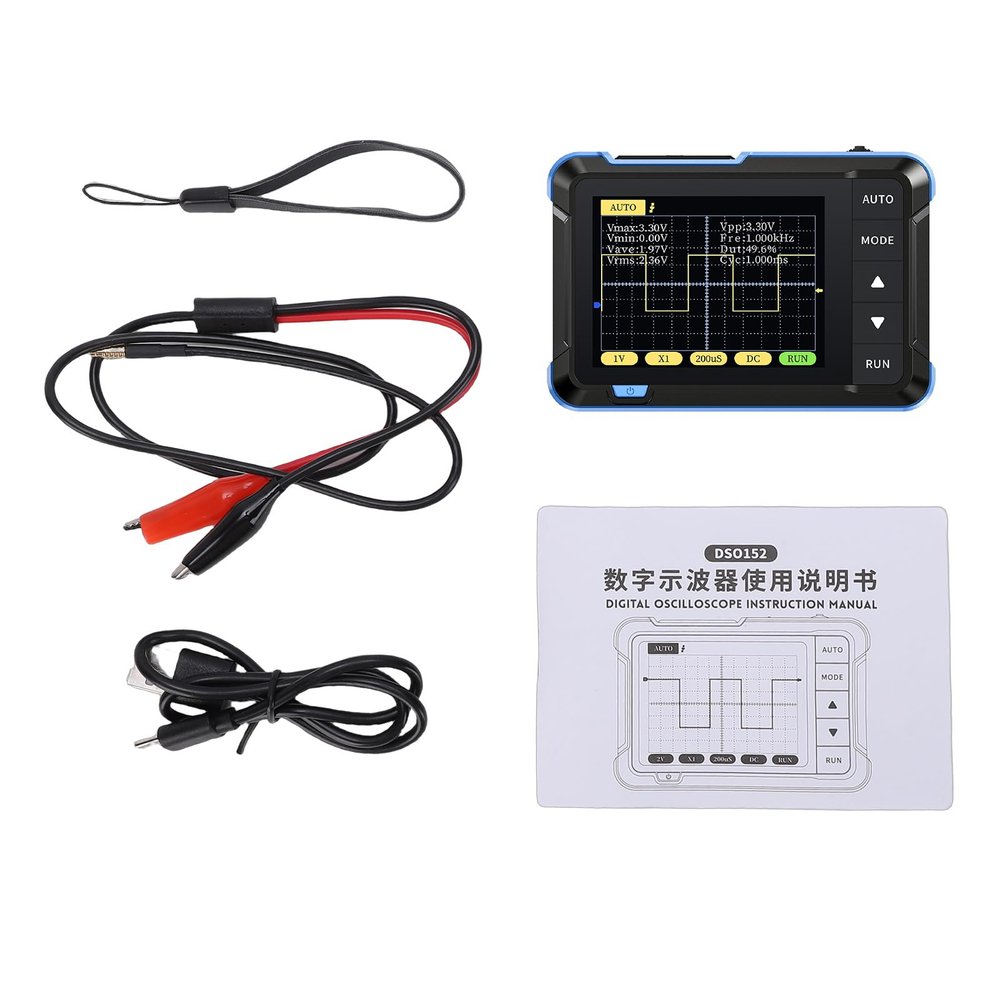

Specifications: Sampling rate: 2.5 MS/s; coupling mode: AC/DC; bandwidth: 200 kHz; display: 2.8 inches, 320 240 pixels; vertical sensitivity: 10 mV/div10 V/div in a 1-2-5 progression; USB charging: 5 V/1 A; time-base range: 10 s/div50 s/div in a 1-2-5 progression; battery: built-in rechargeable lithium battery, 1,000 mAh; voltage range: X1: 40 V (Vpp: 80 V), 400 V (Vpp: 800 V); square-wave calibration: frequency 1 kHz, duty cycle 50%; dimensions: approximately 99 68.3 19.5 mm (3.90 2.69 0.77 inches); trigger modes: Auto, Normal, and Single. Package contents: 1 DSO152 main unit, 1 red and black clip probe, 1 user manual, 1 wrist strap, and 1 USB charging cable.
