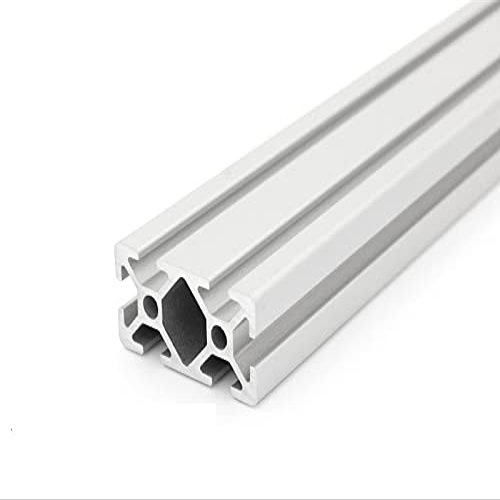

Aluminum Profile 20x40L I-Type Slot 5, Light, Silver Anodized, 1770 mm

Description

• 20 x 40 mm I-Type aluminum profile
• Slot 5; 6 slots, 5 mm wide and 6.35 mm deep
• Light design
• Core suitable for two M5 threads
• Natural-color anodized aluminum
• Length: 1770 mm

Aluminum profile 20x40, I-Type slot 5, silver anodized. Technical data: Profile: 20 x 40 mm I-Type 6 slots with a slot width of 5 mm and slot depth of 6.35 mm Core suitable for accommodating two M5 threads Material: aluminum, natural-color anodized Properties: Slot: Slot 5 Design: light Preload: 0.2 mm +0.1/-0.15 mm Slot dimension: 5.0 +0.3 mm Core bore: 4.3 0.1 mm Surface: Anodizing: E6Ev1, 1015 m Anodizing contact area: removed Mechanical properties: Designation: EN 572-3 | EN-AW 6063 Condition: EN 515 | T66 Rp0.2: 200 N/mm Rm: 245 N/mm A: 8% A50: 6% Hardness: 80 HB Area calculation: Area: 325.6 mm Outer contour perimeter: 236.2 mm Center of gravity: X: 20.0 mm Y: 10.0 mm Area moment of inertia: Second moment, horizontal: IX: 14,010.8 mm Second moment, vertical: IY: 51,215.1 mm Section moduli: WX max: 1,401.1 mm WX min: 1,401.1 mm WY max: 2,560.7 mm WY min: 2,560.7 mm Nominal weight: approximately 0.883 kg/m
