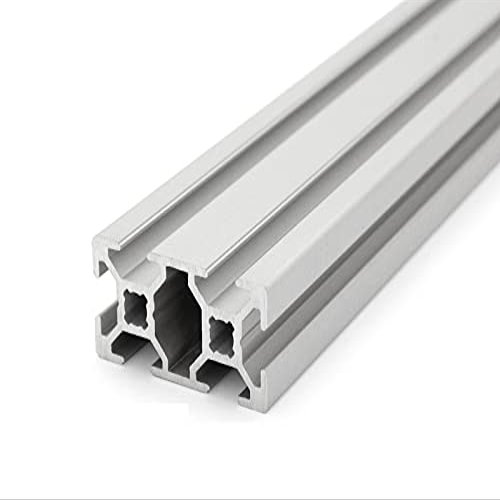

Aluminum Profile 20x40L B-Type Groove 6, Light, Silver-Anodized, 1630 mm

Description

• 20x40 mm aluminum profile, B-type groove 6
• Light version with 6 mm groove width
• Silver anodized, natural-color finish
• Core suitable for an M6 thread
• Length: 1630 mm

Aluminum profile 20x40, B-type groove 6, silver anodized. Technical data: Profile: 20x40 mm, B-type Groove width: 6 mm Groove depth: 5.5 mm Core suitable for an M6 thread Material: aluminum, natural-color anodized Properties: Groove: Groove 6 Version: light Preload: 0.2 mm +0.1/-0.15 mm Groove dimension: 6.0 +0.3 mm Core bore: 5.5 +0.2/-0.1 mm Surface: Anodizing: E6Ev1, 1015 m Anodizing contact area: removed Mechanical properties: Designation: EN 572-3 | EN-AW 6063 Condition: EN 515 | T66 Rp0.2: 200 N/mm Rm: 245 N/mm A: 8% A50: 6% Hardness: 80 HB Cross-sectional properties: Area: 285.3 mm Outer contour perimeter: 228.6 mm Centroid: X: 20.0 mm; Y: 10.0 mm Area moments of inertia: Second moment, horizontal: IX: 11,875.0 mm Second moment, vertical: IY: 45,789.2 mm Section moduli: WX max: 1,187.5 mm WX min: 1,187.5 mm WY max: 2,289.5 mm WY min: 2,289.5 mm Nominal weight: approx. 0.773 kg/m
