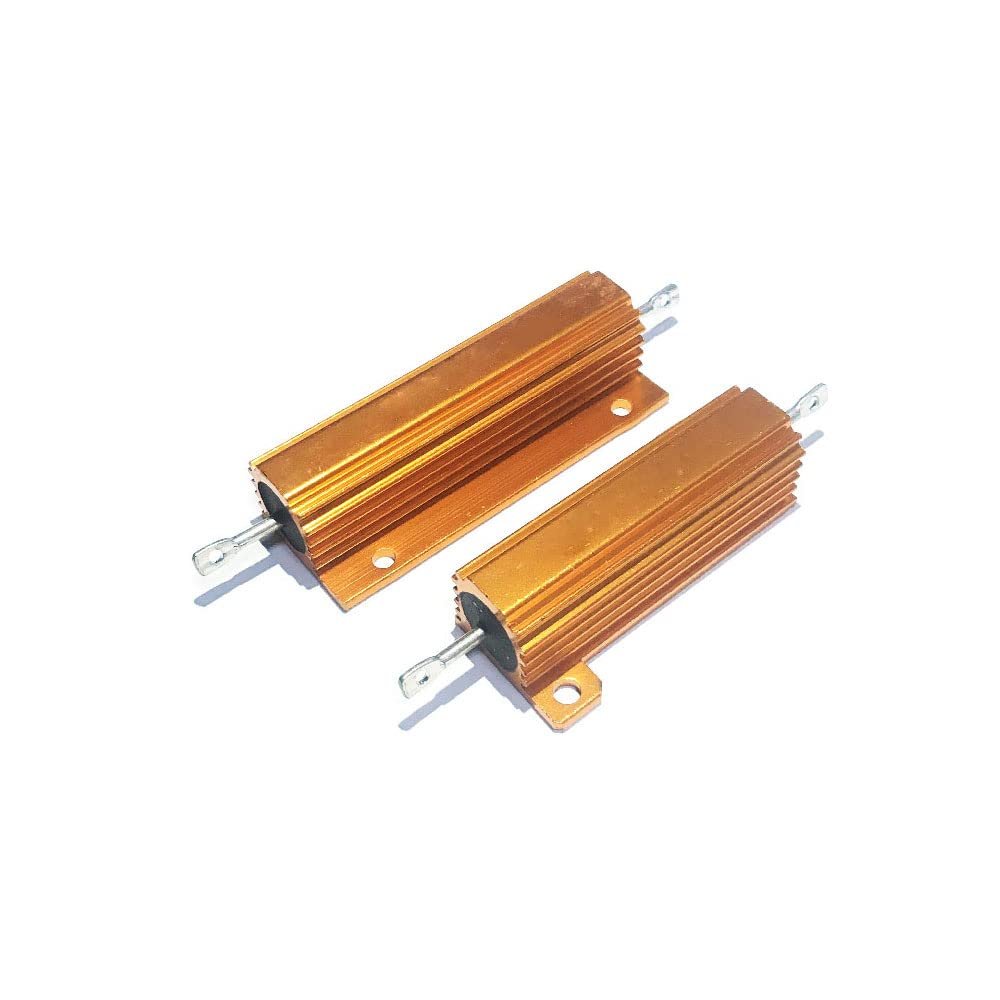

Aluminum Power Metal Case Wirewound Resistor, 50W, 180 Ohm

Description

• Suitable for inverters, LED lights, speakers, frequency dividers, the servo industry, and other industrial control applications.
• Professional construction with solid build, temperature resistance, moisture resistance, high vibration resistance, and explosion protection.
• This product generates heat during use.
• Do not touch the outside of the resistor directly while it is operating for an extended period to avoid injury.
• Provide adequate heat dissipation when the resistor operates for a long time.

Type: Aluminum case resistor External material: Aluminum Color: Gold Power rating: 100W Resistance tolerance: 5% (J) Dimensions: 60 21 15 mm / 2.36 0.83 0.60 in (L W H); dimensions exclude pins and mounting parts. Mounting part size: 60 6 mm / 2.36 0.24 in (L W). The bottom of the resistor protrudes with a mounting hole. Pin length: 12 mm / 0.47 in Net weight: 55 g / 0.12 lb Power rating: 50W Tolerance: 5% Working voltage: 220V Maximum overload voltage: 220V Body dimensions: 49.2 16 15 mm / 1.93 0.63 0.59 in (L W H) Lead length: 10 mm / 0.39 in Mounting hole sizes: 1.8 mm / 0.07 in and 3.5 mm / 0.14 in
