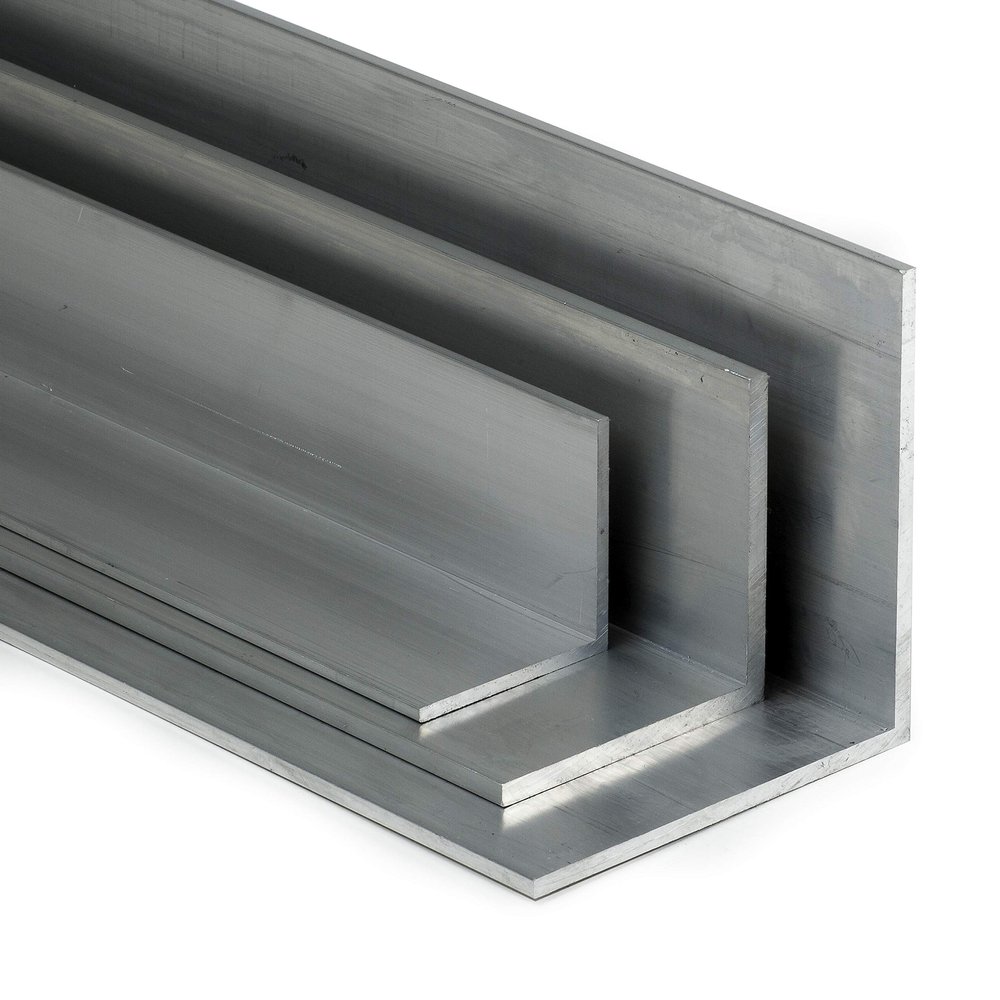

Aluminum Equal-Leg Angle AlMgSi0.5 70 x 70 x 5 mm, 400 mm Cut Length

Description

• Dimensions (W x H x T): 70 mm x 70 mm x 5 mm
• Length: 400 mm
• Equal-leg aluminum angle, 70 x 70 x 5 mm
• Alloy: AlMgSi0.5 / AW-6060
• Other sizes and custom lengths from 25 mm to 2,000 mm available
• Individually cut to the selected length
• Suitable for milling, drilling, and sawing
• Surface: untreated/raw; may show storage marks
• Raw-sawn length; cut surfaces and edges are untreated
• Machining: milling, drilling, and sawing with cooling
• Length tolerance: approximately +0.0 to 2 mm
• Width and thickness tolerance: approximately +/- 2% according to EN 755 et seq., depending on batch
• Angular accuracy: approximately +/- 2 according to DIN EN 755-9
• Density: 2.75 kg/dm
• Brinell hardness: HB 7080
• Electrical conductivity: 2835 m/( mm)
• Thermal conductivity: approximately 1.86 W/(cm C)
• Weldable using MIG/TIG with filler metal

Material: aluminum. Alloy: AlMgSi0.5 / DIN 3.3206 / EN AW-6060 / T66 extruded / F22. Choose from various widths, heights, wall thicknesses, and lengths. Available widths and heights: 40 mm, 45 mm, 50 mm, 60 mm, 70 mm, and 100 mm. Available wall thicknesses: 4 mm and 5 mm. Available lengths range from 25 mm to 2,000 mm. The item is individually cut to your selected length; please choose the desired length from the list. Surface: untreated/raw and may show storage marks. Cut surfaces and edges are untreated. The length is raw-sawn. Milling, drilling, and sawing should be performed with cooling. Material properties: density 2.75 kg/dm; electrical conductivity 2835 m/( mm); thermal conductivity approximately 1.86 W/(cm C); tensile strength Rm 215260 N/mm; yield strength Rp0.2 160230 N/mm; Brinell hardness HB 7080; heat-aged. Anodizing: very good. Hard chrome plating: good. Chrome-nickel plating: good. Powder coating: very good. Chip form: spiral. Welding: MIG/TIG with filler metal. Tolerances: length approximately +0.0 to 2 mm; width, thickness, and height approximately +/- 2% according to EN 755 et seq., depending on batch; angular accuracy approximately +/- 2 according to DIN EN 755-9. The product image is representative/similar.
