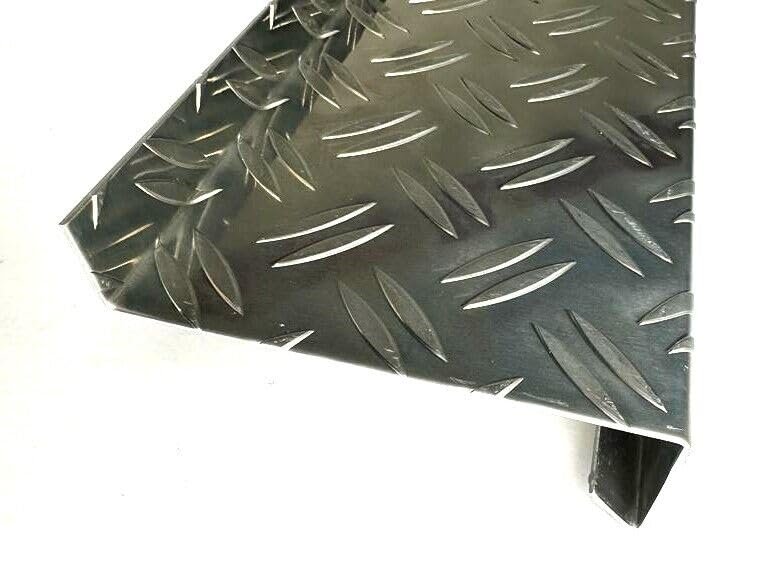

Aluminum Checker Plate Window Sill/Drip Flashing, 2/3 or 2.5/4 mm, Custom Length

Description

• Window sill profile 95 with 5 drainage slope, bent without plaster edge or end cap
• Aluminum Duett checker/tread plate
• Selectable lengths: 500, 750, 1,000, 1,500, or 2,000 mm (2 mm); custom lengths available
• Selectable material thickness: 2/3 mm or 2.5/4 mm
• Rounded-edge bent design with 25 mm screw flange, selectable projection, 40 mm front visible edge, and 15 mm rear return
• Custom dimensions, projections, lengths, and drainage-slope angles available

Bent window sill/drip flashing made from new aluminum Duett checker/tread plate in 2/3 mm or 2.5/4 mm thickness. The profile has a 5 drainage slope, no plaster edge or end cap, a 25 mm screw flange, a selectable projection, a standard 40 mm front visible edge, and a 15 mm rear return. Standard lengths are 500, 750, 1,000, 1,500, and 2,000 mm (2 mm). Select the next longer standard length and specify your desired length with the order. The visible side faces outward. The window sills/drip flashings are supplied with protective film on one side, which can be easily removed. Aluminum window sills should project approximately 40 mm beyond the finished facade. The front visible edge can be adjusted from 25 to 40 mm. Custom profiles and dimensions are available, including splice flashings. Cut width = 15 + 40 + projection + 25 mm.
