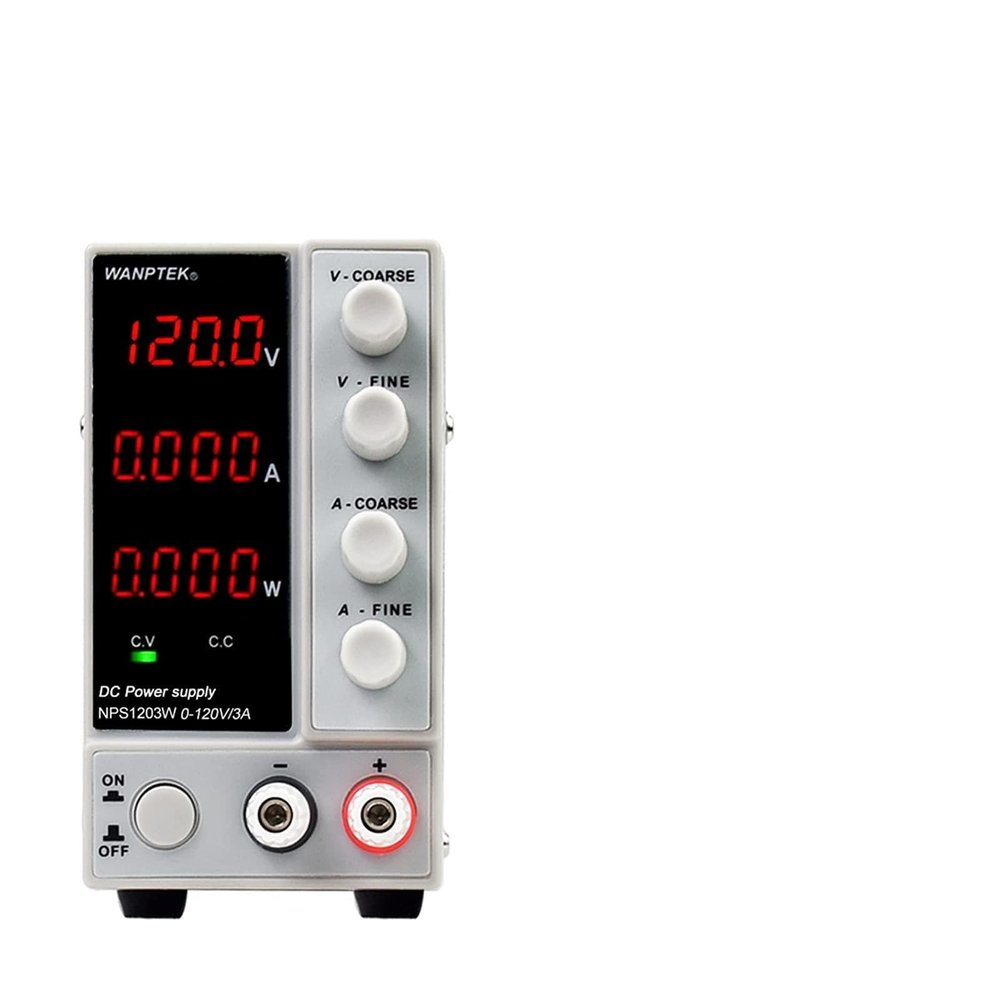

Adjustable DC Power Supply with LED Display, NPS Series

Description

• Full operating protection: overtemperature, overload, and short-circuit protection.
• Compact size, low ripple, light weight, high power density, and high efficiency.
• Voltage stabilization and current limiting with simple operation.
• Automatic switching between constant-voltage and constant-current modes.
• Three-window LED display for voltage, current, and power with high precision.

Temperature-controlled fan cooling with low noise and long service life. Four potentiometers allow precise adjustment. Binding-post voltage input and convenient selection. Output voltage is continuously adjustable from 0 to the rated voltage. Output current is continuously adjustable from 0 to the rated current. AC input. Three-digit display resolution: 0.1 V / 0.01 A. Four-digit display resolution: 0.01 V / 0.001 A. NPS-W series models include NPS306W, NPS3010W, NPS605W, and NPS1203W. The housing is available in black and white. This series is a miniature switching DC power supply. Output voltage and current can each be controlled and adjusted using variable resistors. The panel includes a high-precision, three-window digital display for voltage, current, and power, allowing users to view the current operating status and various machine parameters. Specifications: - Models: NPS306W, NPS3010W, NPS605W, NPS1203W - Output power: 180 W, 300 W, 300 W, 360 W, respectively - Output current: 06 A, 010 A, 05 A, 03 A, respectively - Input voltage: AC 230/115 V 10%, 50/60 Hz - Operating humidity: below 80% RH; below 70% RH - Constant-voltage mode: voltage stability 0.1% 3 mV; load stability 0.2% 3 mV; voltage ripple 0.5% Vp-p - Constant-current mode: current stability 0.1% 3 mA; load stability 0.2% 3 mA; current ripple 0.5% Vp-p - Recovery time: 500 s - Temperature coefficient: 100 ppm/C - Display: 0.4-inch red, three-digit display - Display accuracy: 0.5% 2 digits - Optional display resolution: 0.1 V / 0.01 A or 0.01 V / 0.001 A Applications include production-line testing; mobile phone, computer, electronic equipment, car DVD, and car audio repair; product aging and electroplating; testing resistors, capacitors, relays, DC motors, and LEDs; battery charging; laboratories, scientific teaching, factories, maintenance, and production lines; and other applications requiring a DC power supply. Package contents: 1 DC power supply, 1 power cord, 1 test lead, 1 instruction manual.
