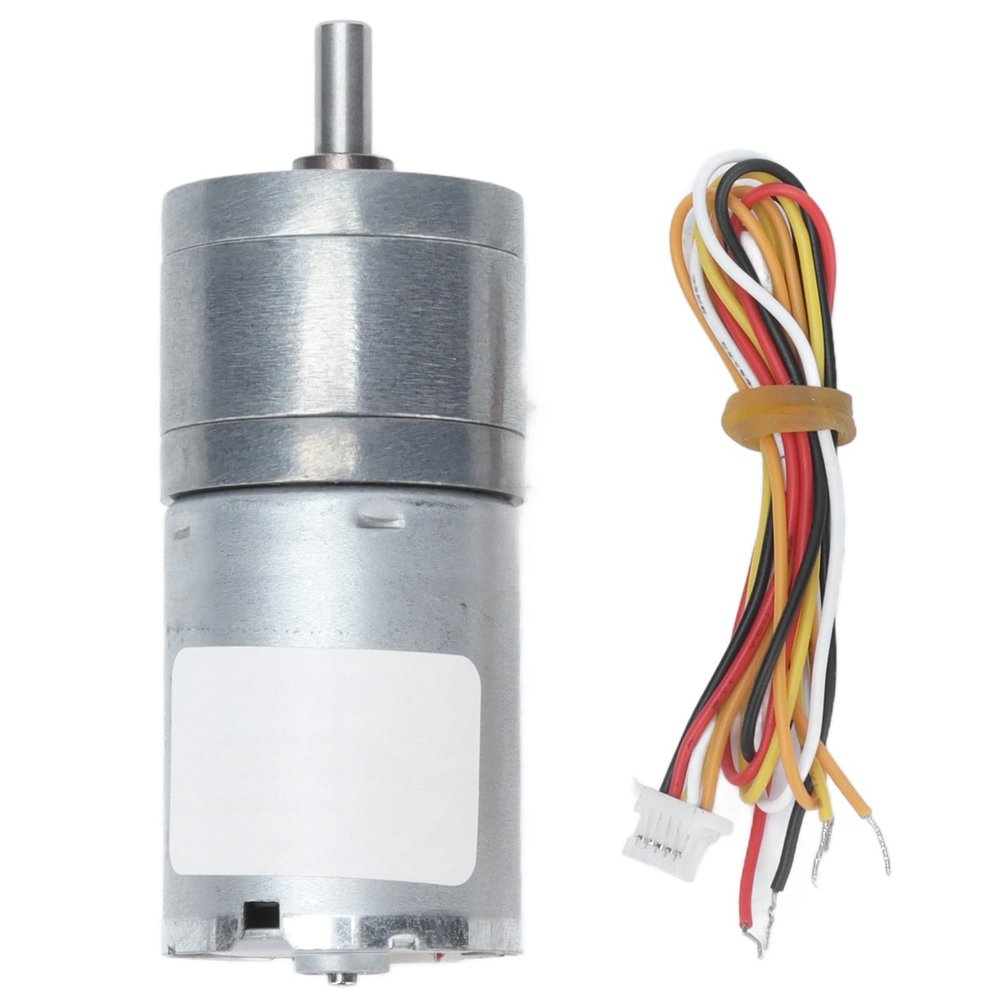

Adfaga JGA25-2430 Brushless DC Gear Motor, 24 V, 620 rpm

Description

• Advanced brushless technology: 24 V DC motor with integrated drive and dual protection circuit; low-noise operation rated at 45 dB.
• All-metal planetary gear mechanism with hardened steel teeth, zinc-alloy housing, and 85% gear efficiency.
• PWM speed control adjustable from 0100%, bidirectional operation, and integrated real-time speed feedback output.
• 9.5 mm D-shaped shaft with a flat surface for secure coupling in automated equipment.
• Designed for robotics, smart-home automation, RC vehicles, and industrial prototypes; includes a 15 cm red/black/yellow wiring harness.

Item type: Brushless motor. Model: JGA25-2430. Material: Zinc alloy. Intended uses include model cars, self-balancing two-wheeled vehicles, smart tracking devices, smart household appliances, and robots. Operating voltage: DC 24 V. Shaft length: approximately 9.5 mm (0.37 in); pitch: approximately 2.5 mm (0.098 in). Shaft diameter: approximately 4 mm (0.16 in), D-shaped. Motor diameter: approximately 24.4 mm (1 in). Speed control is adjustable, and forward or reverse operation is supported. The motor is rated at 620 rpm for the specified version. Package includes 1 brushless motor and 1 connection cable. Warning: Do not connect the positive and negative power terminals incorrectly. Do not connect the signal wire to a power supply. Damage resulting from incorrect connections or use of an incorrect motor is not covered by the warranty.
