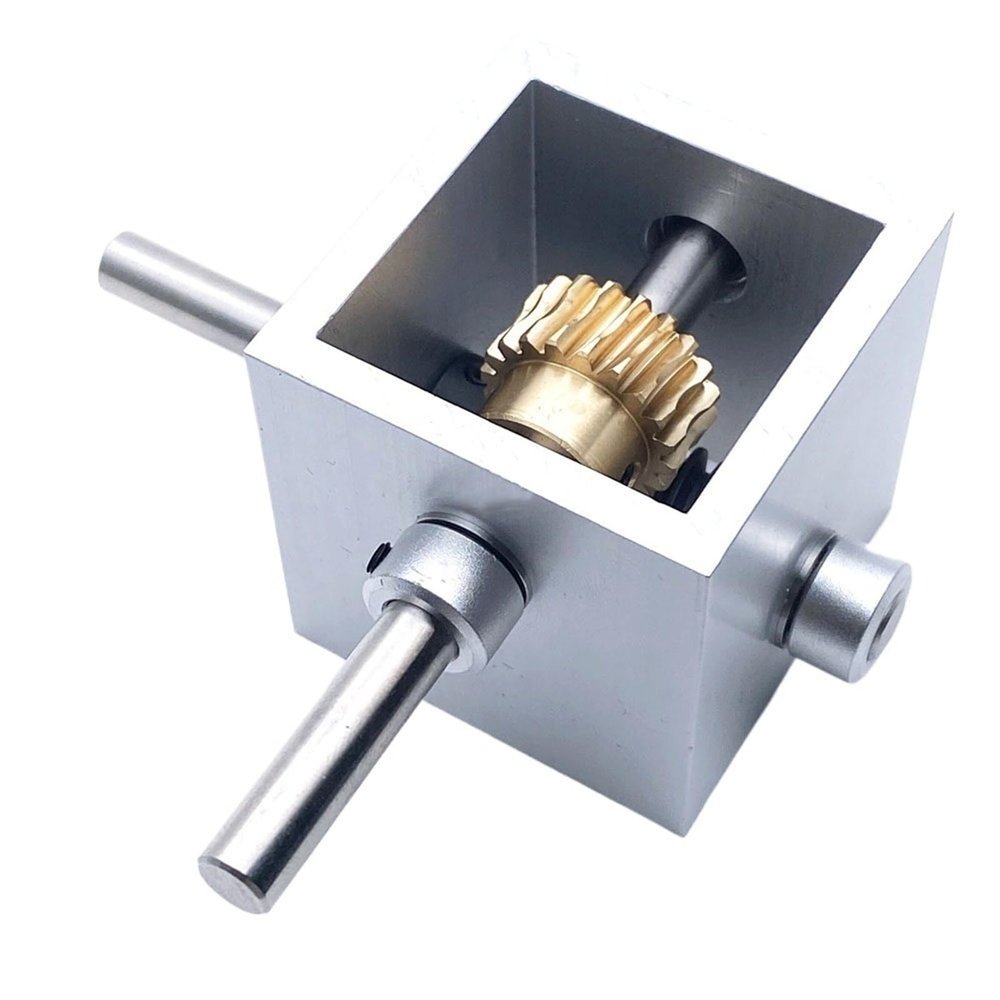

90-Degree Self-Locking Worm Gearbox, 1:10 Ratio, 6 mm Shaft

Description

• Model: 90-degree angle worm gearbox
• Reduction ratio: 1:10
• Self-locking worm gear design
• Provides right-angle turns and corner steering in various equipment configurations
• Enables smooth rotation and torque transmission for simple mechanical DIY applications

Model: 90-degree angle worm gearbox Reduction ratio: 1:10 Self-locking worm gear Worm gear parameters: Worm material: Blackened 45 steel Worm wheel material: Copper Number of worm starts: 2 (1:10 ratio) Worm outside diameter: 18 mm Worm length: 32 mm Number of worm wheel teeth: 20 Worm wheel outside diameter: 22 mm Tooth width: 10 mm Step outside diameter: 17 mm Step thickness: 8 mm Worm wheel bore: 6 mm or 8 mm Mounting center distance: 18 mm Total gearbox weight: approximately 0.25 kg
