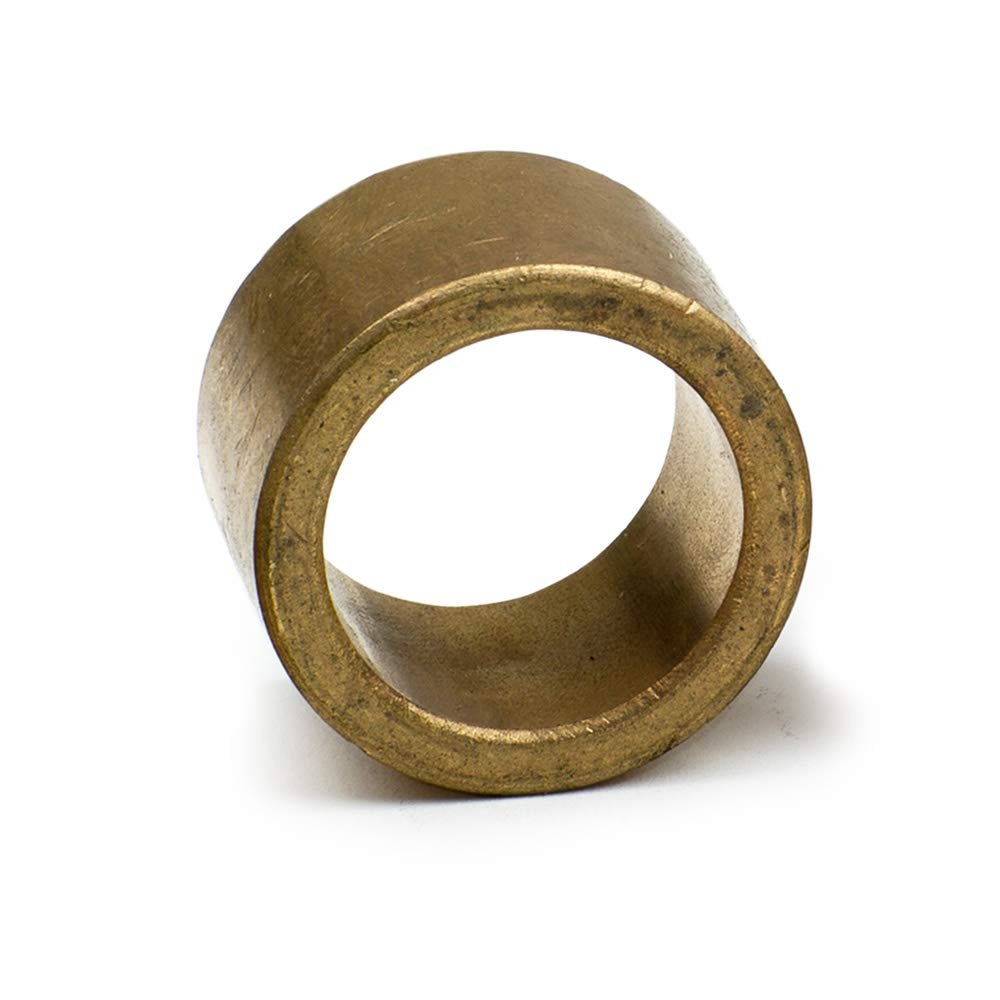

8x Sintered Bronze Bushings 18x22x30 mm for 18 mm Shafts

Description

• Sintered bronze cylindrical bushing, 18x22x30 mm
• Available in quantities of 120; select the desired quantity
• Material: sintered alloy Fe+Cu+Sl
• Alloy hardness: HB > 70; density: 6.06.3 g/cm
• Oil impregnation: 12 vol.%; oil-impregnated
• Maximum dynamic load, dry: 20 MPa
• Maximum static load: 50 MPa
• Load rating: pvmax = 2.5 N/mm*m/s
• Maximum speed: 0.5 m/s dry, 1.5 m/s lubricated
• Operating temperature: -40 to +120C
• Self-lubricating and maintenance-free sintered bronze plain bearing
• For press-fitting into an H7 housing; use a suitable pressing mandrel
• Tolerances: outer diameter R7, inner diameter F7, length Js13
• For shafts with an 18 mm diameter
• Applications: pivot bushings for excavators, cranes, and forklifts; hydraulic cylinder bushings; guide bushings for machines and tools

Sintered bronze cylindrical bushing, 18x22x30 mm, for shafts with an 18 mm diameter. Made from a sintered Fe+Cu+Sl alloy, this self-lubricating, maintenance-free plain bearing is designed for press-fitting into an H7 housing. Use a suitable pressing mandrel. Tolerances are outer diameter R7, inner diameter F7, and length Js13. Suitable applications include pivot bushings for excavators, cranes, and forklifts, bushings for hydraulic cylinders, and guide bushings for machines and tools. The product photo is for illustrative purposes. Available in quantities of 120; select the desired quantity.
