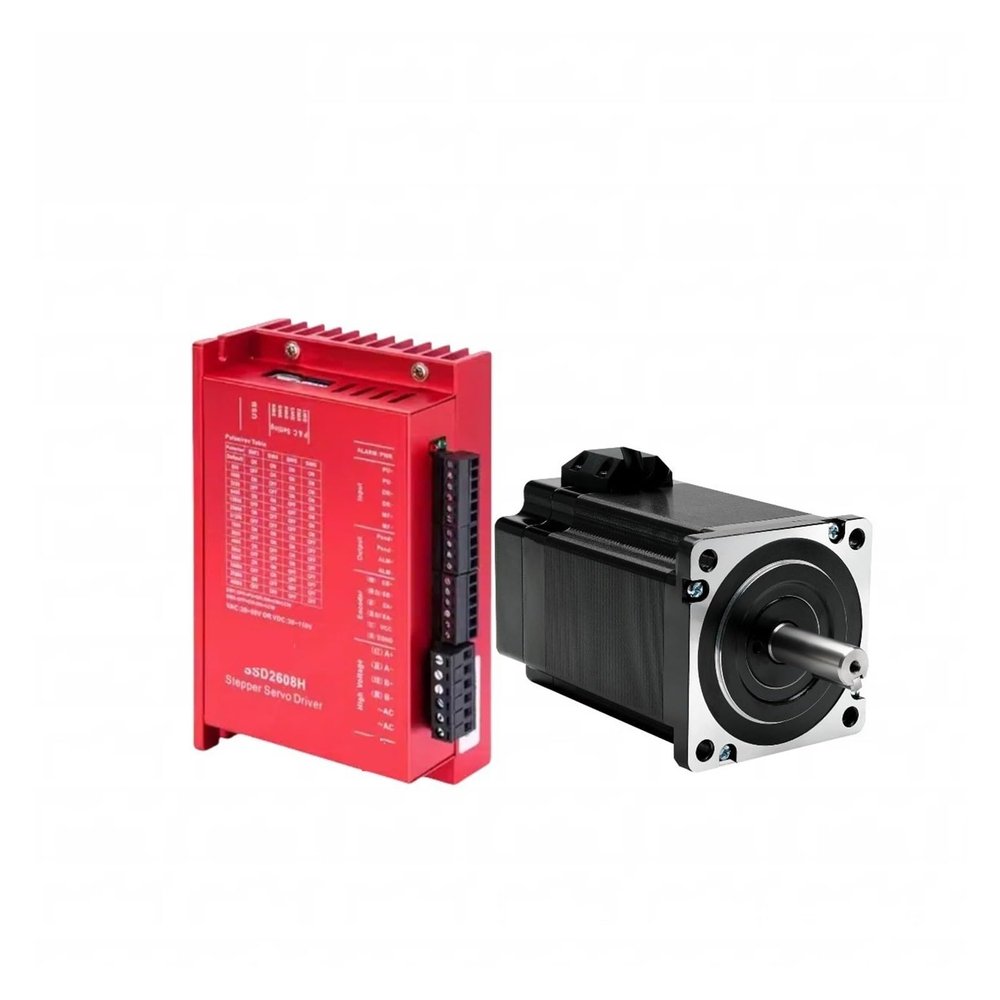

86 Closed-Loop Stepper Motor Set YK286EC80A1 with SSD2608H Driver and MS-S3 Encoder for 3D Printers and Sculpting Machines (YK286EC118A1)

Description

• 86 closed-loop stepper motor delivers high torque with real-time position feedback
• SSD2608H driver enables smooth motion and fast response under dynamic loads
• MS-S3 encoder provides accurate signal tracking and step-error correction
• Suitable for systems, motion platforms, and precision equipment applications
• Integrated set simplifies installation and improves system synchronization

Package: Two-phase 86 mm closed-loop stepper motor + SSD2608H driver 1. Two-phase 86 mm closed-loop stepper motor: - Step accuracy: 5% - Temperature: 80C max. - Ambient temperature: 0C to +50C - Insulation resistance: 100 M min. at 500 VDC - Dielectric strength: 500 VAC for 1 minute - Radial runout deviation: 0.02 mm max. at a 450 g load - Axial runout deviation: 0.08 mm max. at a 450 g load 2. SSD2608H features: - Next-generation digital control technology - Uses advanced power-angle closed-loop control technology - Intelligently adjusts current according to load conditions, with a total of 16 steps - Drives 60/86 series stepper motors - Optically isolated differential signal input - Pulse response frequency up to 200 kHz - Voltage range: AC 2080 V or DC 30110 V - Protection against overcurrent, overvoltage, undervoltage, and following errors
