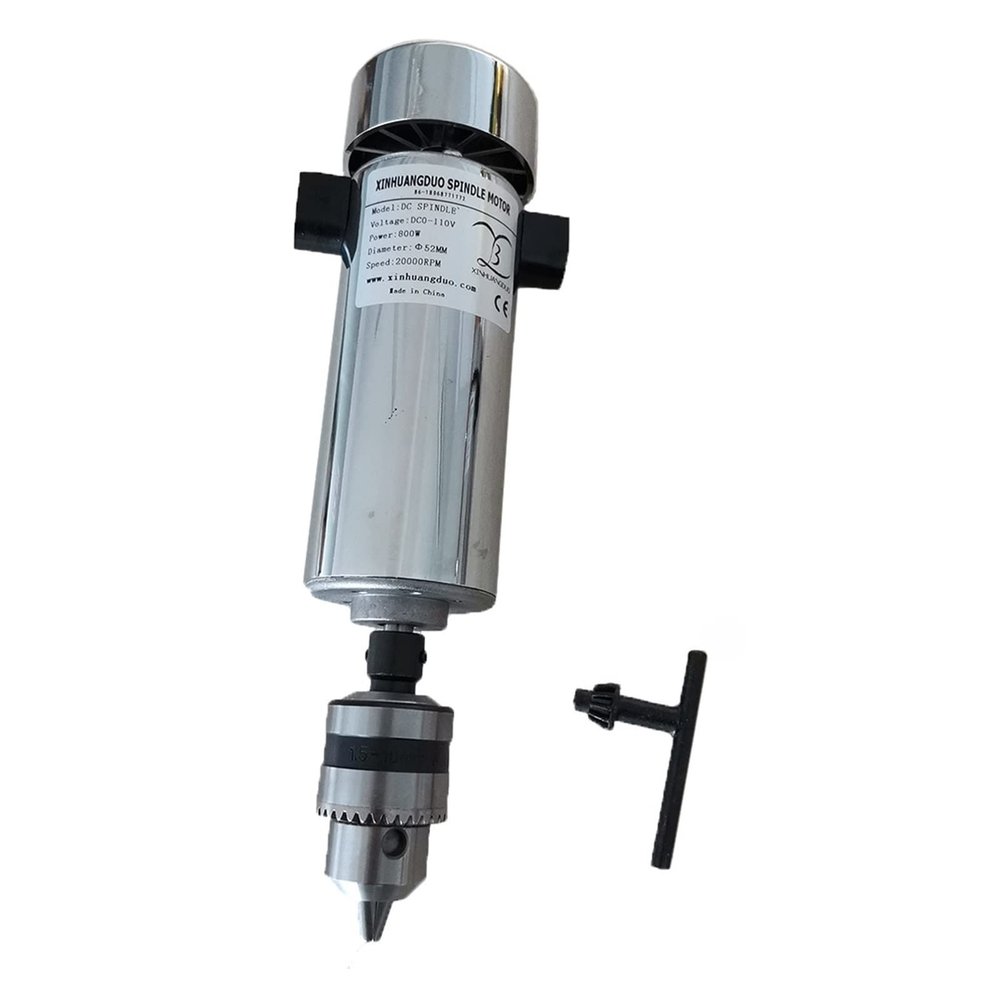

800 W DC Spindle Motor, 20,000 RPM, for CNC Engraving

Description

• Spindle net weight: 990 g
• Radial runout: approximately 0.010.03
• Suitable for engraving materials such as metal and nonmetal
• Forced-air cooling with externally accessible carbon brushes
• Overall motor length: 203.5 mm, including the clamping section and motor

800 W DC CNC carving and engraving spindle motor with forced-air cooling. Spindle motor specifications: Speed: 20,000 rpm Power: 800 W Torque: 0.79 Nm Insulation resistance: >2 megohms Withstand voltage: 400 V Overall length: 203.5 mm Diameter: 52 mm Shaft collet length: 45 mm Chuck section size: 35 mm. Shaft section length: 43 mm overall, including the nut and collet. This product includes one ER11 3.175 mm collet and one ER16 8 mm collet as standard. Precautions and chuck specifications: ER11 spindle arbor clamp: 17 mm, with a standard 3.175 mm chuck. ER16 spindle arbor clamp: 110 mm, with a standard 8 mm chuck. Drill chuck clamping range: 1.510 mm.
