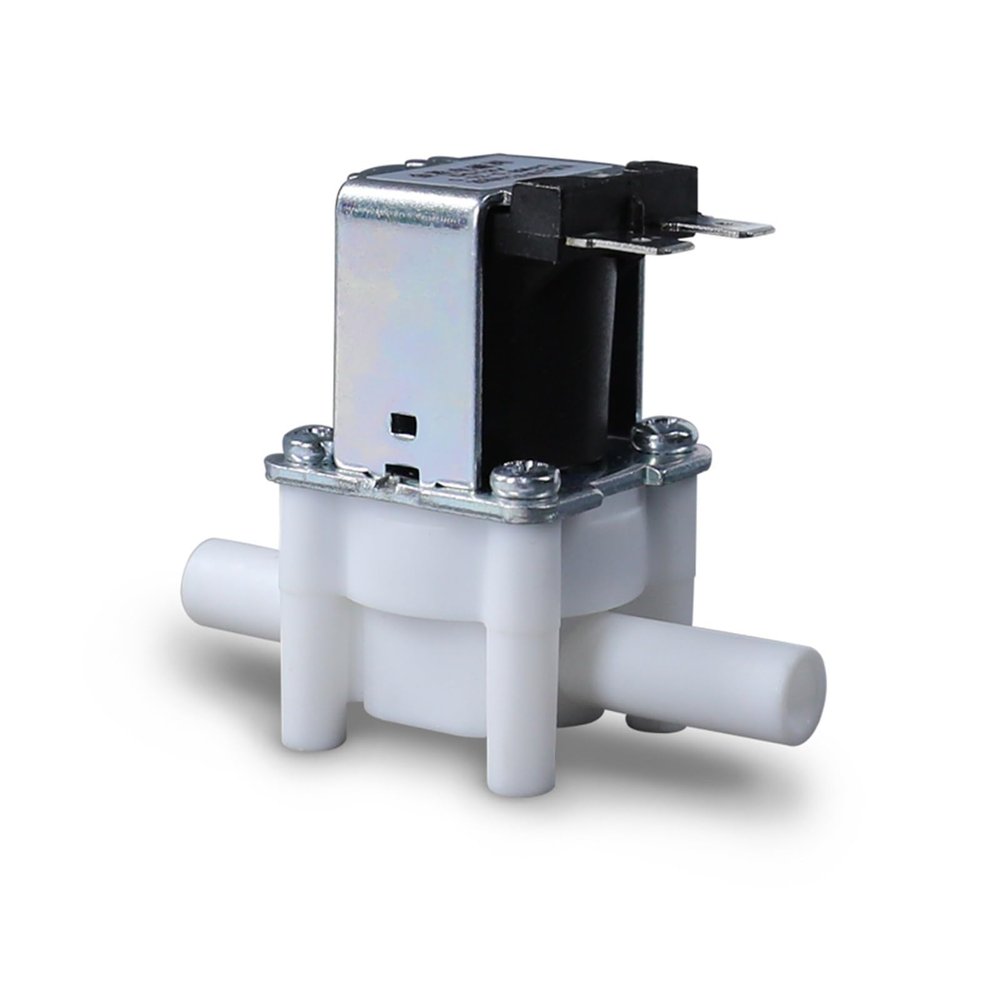

6.3 mm/9.5 mm Motorized Plastic Solenoid Valve with Direct Opening for RO and Purified Water Machines, 12 V/24 V/220 V (6.3 mm, DC24V, Normally Open)

Description

• Ambient temperature: 050C
• Medium temperature: 0100C
• Working pressure: pressurized 0.020.8 MPa; non-pressurized 00.01 MPa
• Water pressure resistance: 1.6 MPa
• Power connection: 6.3 mm standard tab terminal

Specifications Operating form: Normally closed/normally open Action mode: type Operating voltage: DC12V, DC24V, AC220V Ambient temperature: 050C Medium temperature: 0100C Working pressure: pressurized 0.020.8 MPa; non-pressurized 00.01 MPa Water pressure resistance: 1.6 MPa Power connection: 6.3 mm standard tab terminal Medium: purified water and tap water. Not suitable for strongly alkaline, thick, viscous liquids or other non-liquid substances. Notes: 1. Package includes: 1 solenoid valve. 3. The plastic solenoid valve is supplied as a separate solenoid valve. The coil protection cover and tab terminal must be purchased separately. The brass solenoid coil protection cover is standard and does not need to be purchased separately. 4. The pressurized solenoid valve will be shipped by default if no note or message is provided when ordering. 5. Working water pressure for pressurized and non-pressurized valves: Pressurized solenoid valve (water inlet valve): 0.020.8 MPa, approximately 18 kg of pressure. Tap water is generally supplied through a pressurized solenoid valve. The pressure range is approximately 18 kg. Non-pressurized solenoid valve (water outlet valve): 01,100 mm / 080 cm. For low-pressure water flow or natural drainage from a water tank, the maximum water level and the solenoid valve installation position should not exceed 80 cm. Choose a non-pressurized solenoid valve. 6. Due to manual measurement, an error of 02 mm may occur, which is normal. 7. Due to differences between monitors, the image may not reflect the actual color of the item. Thank you.
