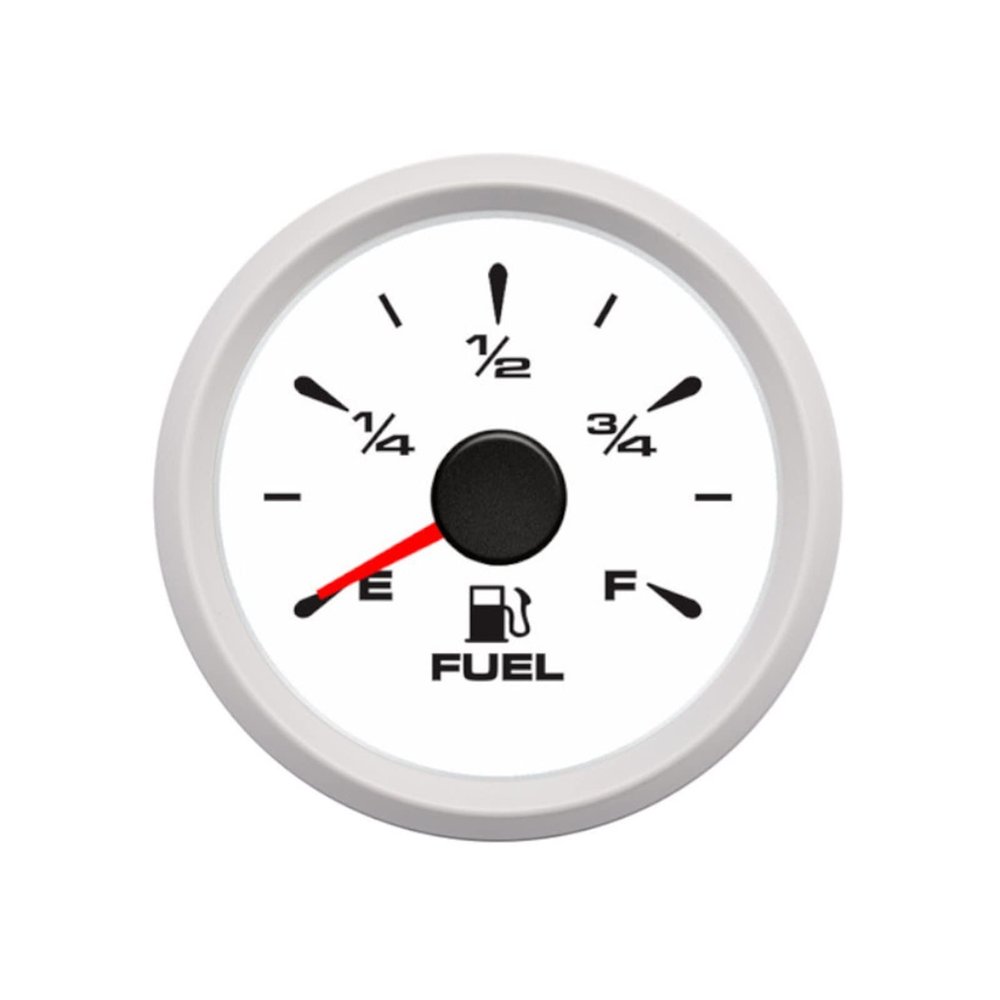

52 mm Marine Fuel/Water Level Gauge, 0–190 Ω / 240–33 Ω, White L

Description

• Stepper motor design with low power consumption, long service life, and high precision
• Curved anti-fog glass
• 316L stainless steel front cover for long-term use in acidic, alkaline, and humid environments
• Ultra-wide operating-voltage design
• Snap-lock wiring harness connector for a secure connection, including under strong vibrations
• Suitable for engines, generators, boats, construction machinery, agricultural machinery, and vehicle modifications

Specifications: - Material: 316L stainless steel and anti-fog glass - Installation diameter: 52 mm or 2-1/16 in - Display range: EF - Connection method: wire insertion - Backlight colors: red, green, blue, white, yellow, olive green, orange, and purple. The color changes automatically every minute, or you can press the display's Set button to select a preferred color. Additional specifications: - Operating current: 60 mA - Operating temperature: -30 to +75C - Storage temperature: -40 to +85C - Protection rating: IP67 - Item colors: black, white - Item condition: new - Packaging: neutral box Package includes: - 1 fuel level gauge - 1 wiring harness - 1 installation instructions Sensor parameters: - Resolution range: 21 mm - Mounting: SAE standard, 5 holes - Operating temperature: -40 to +85C - Rated current for alarm switch: 500 mA - Level sensor suitable for diesel and gasoline engines - Suitable for fuel level gauges and water level gauges - Mounting hardware: five M5 screws and a 2 mm-thick gasket Sensor package includes: - 1 sensor - 1 gasket - 5 screws
