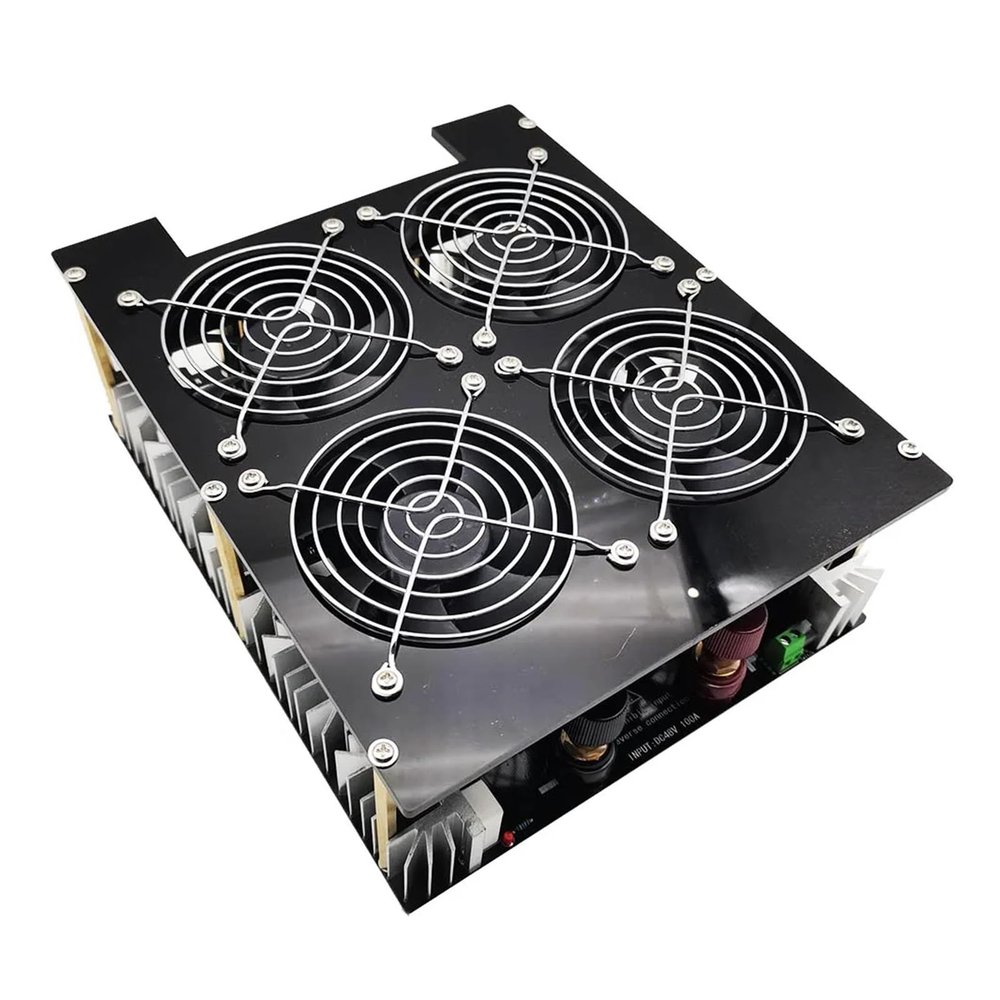

5000 W ZVS Induction Heater with 70 mL Crucible, Coil, Pump and Power Supply

Description

• 2 mm thick PCB with 2 oz copper thickness, high current capacity and good heat dissipation; 2.4 high-performance fans.
• Optional external control board supports external button control, integrated overload protection and control-board temperature protection.
• The heating coil is wrapped with high-temperature insulating materials to prevent short circuits during heating and is specially customized.
• The input connection uses high-current power terminals that can be connected directly to a dedicated 100 A power meter.
• Includes a water pump for cooling the heating coil and a temperature sensor for monitoring the motherboard temperature at any time.

Product parameters 1. Dimensions (length width height): 2560 210 115 mm. 2. Heating coil size: 60 70 73 mm or 70 80 73 mm (inner diameter outer diameter height). 3. Input voltage: DC 48 V. 4. Maximum power: 5000 W. 5. Maximum DC operating current: 100 A. 6. The maximum temperature for direct heating of iron metal is above 1000 degrees. 7. The maximum crucible temperature is 1600 degrees. Package contents: 2 power supplies 1 circuit board 1 48 V copper tube 1 water pump 1 crucible
