4x Sintered Bronze Bearings 35x41x35 mm for 35 mm Shafts

Description

• Sintered bronze cylindrical bearing bushings, 35x41x35 mm
• Available in quantities of 120; select the desired quantity
• Material: sintered alloy Fe+Cu+Sl
• Alloy hardness: HB>70
• Alloy density: 6.06.3 g/cm
• Oil impregnation: 12% by volume
• Maximum dynamic load, dry: 20 MPa
• Maximum static load: 50 MPa
• Load rating: pvmax = 2.5 N/mmm/s
• Maximum speed: 0.5 m/s dry; 1.5 m/s with lubrication
• Operating temperature: -40 to +120C
• Self-lubricating and maintenance-free sintered bronze plain bearing
• For press-fitting into an H7 housing; use a suitable press-fitting mandrel
• Tolerances: outside diameter R7; inside diameter F7; length Js13
• For shafts with a diameter of 35 mm
• Applications: joint bushings for excavators, cranes, and forklifts; bushings for hydraulic cylinders; guide bushings for machines and tools

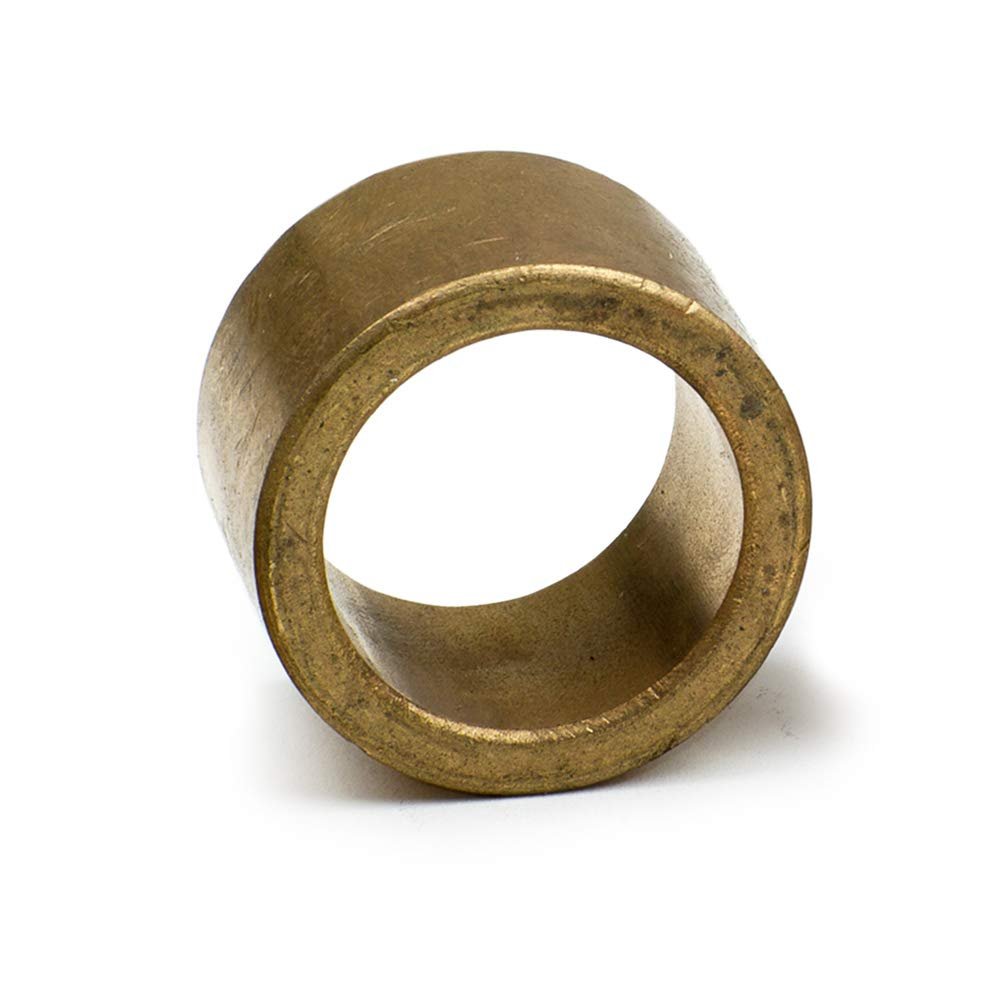

Sintered bronze cylindrical bearing bushing, 35x41x35 mm, for shafts with a diameter of 35 mm. Made from sintered alloy Fe+Cu+Sl, with an alloy hardness of HB>70 and an alloy density of 6.06.3 g/cm. The bushing is oil-impregnated at 12% and is self-lubricating and maintenance-free. It is intended for press-fitting into an H7 housing; use a suitable press-fitting mandrel. Tolerances: outside diameter R7, inside diameter F7, and length Js13. Available in quantities of 120; select the desired quantity. Maximum dynamic load when dry: 20 MPa; maximum static load: 50 MPa. Load rating: pvmax = 2.5 N/mmm/s. Maximum speed: 0.5 m/s dry and 1.5 m/s with lubrication. Operating temperature: -40 to +120C. Applications include joint bushings for excavators, cranes, and forklifts, bushings for hydraulic cylinders, and guide bushings for machines and tools. Product image is for illustration only.
