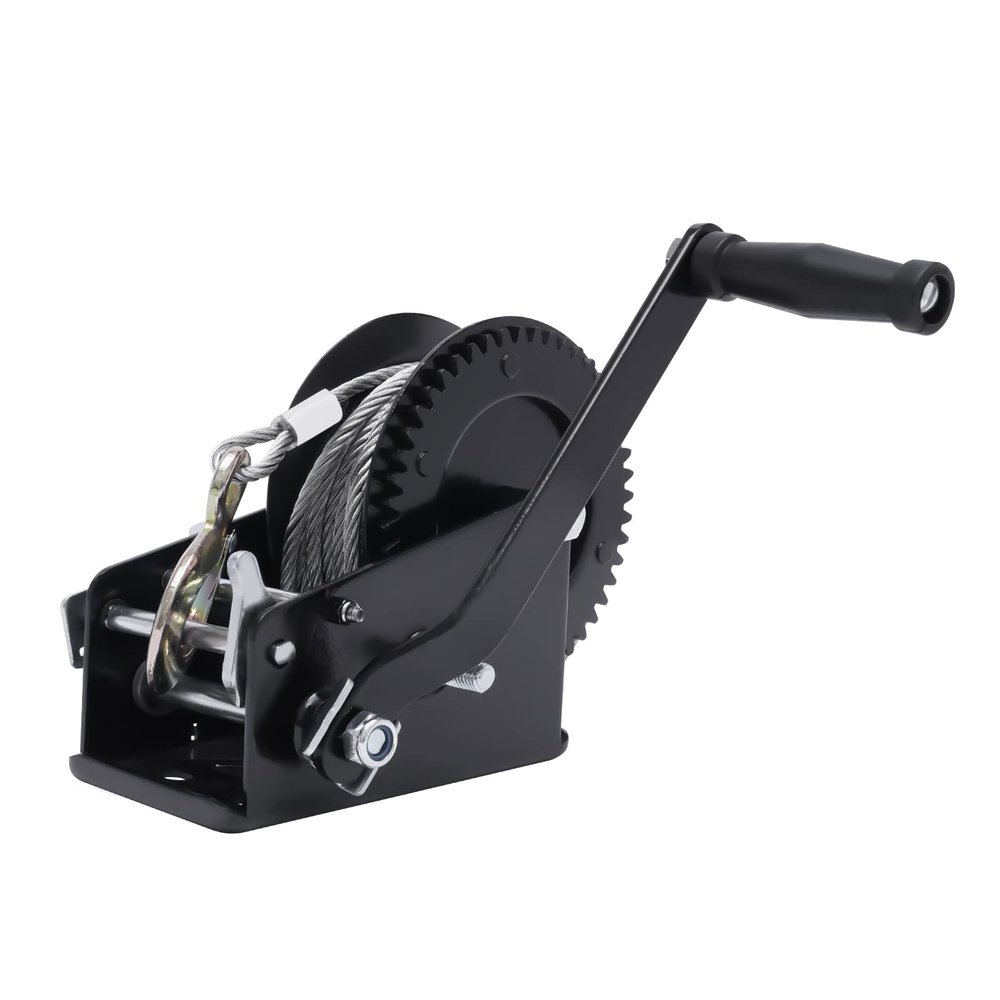

3500 lb Dual-Gear Hand Winch with 33 ft Steel Cable

Description

• Durable carbon steel construction with sprayed plastic and galvanized surface treatment; ground, quenched, and heat-treated gears and pawl.
• Pulling capacity: 3,500 lb/1,587 kg horizontally and 1,700 lb/771 kg vertically; self-locking hook rated for 4,409 lb/2,000 kg.
• Ergonomic, non-slip handle; turn counterclockwise to extend the cable and clockwise to retract it.
• Compact and portable: 7.6 3.9 7.2 in/19.2 10 18.2 cm; net weight 11.02 lb/5 kg.
• Includes a 33 ft/10 m steel cable with a 0.24 in/6 mm diameter.

This manual dual-gear hand winch can be mounted on boats, trailers, pickups, and similar vehicles for pulling and towing applications, including lawn mowers. It is designed for pulling, not lifting. Specifications: black carbon steel construction; surface treatment by sprayed plastic coating, galvanizing, grinding, high-temperature quenching, and heat treatment; protruding mounting type; portable design; two speeds. Primary gear ratio: 4:1. Secondary gear ratio: 8:1. Available gear ratios: 4:1/8:1. Breaking strength: 2,045 kg/4,508 lb. Hook capacity: 2,000 kg/4,409 lb. Horizontal pulling capacity: 1,587 kg/3,500 lb. Vertical pulling capacity: 771 kg/1,700 lb. Drum diameter: 151 mm/5.9 in. Steel cable length: 10 m/33 ft. Cable diameter: 6 mm/0.24 in. Small mounting-hole diameter: 11 mm/0.43 in. Base thickness: 3.5 mm/0.14 in. Base size (L W): 19 10 cm/7.48 3.9 in. Handle length: 25.7 cm/10.1 in. Product size: 19.2 10 18.2 cm/7.6 3.9 7.2 in. Package size: 25.5 18.5 16 cm/10 7.28 6.3 in. Net weight: 5 kg/11.02 lb. Gross weight: 5.5 kg/12.12 lb. Package includes: 1 3,500 lb hand winch with 33 ft steel cable. Safety and use notes: An electronic English manual is provided; read it carefully before use. Do not use the winch to carry people or overloaded objects. Multiple mounting holes on the bottom accommodate different hole patterns and installation methods; if the holes do not suit the installation position, welding may be used to secure the winch according to your requirements. Do not touch the steel cable, drum, or gear disc while the winch is operating. Covering the cable with a piece of soft fabric is recommended to help prevent injury if the cable suddenly breaks. Do not wear loose clothing or jewelry that could become caught in moving parts. Rubber gloves, non-slip shoes, and a cap to contain long hair are recommended. Keep the cable perpendicular to the drum during operation to help prevent wear against the drum edge. At least five cable coils must remain on the drum during operation to prevent the cable from slipping. When pulling heavy objects, using movable pulleys is recommended to reduce the hand-cranking force. Regular cleaning and lubrication are recommended to help prevent damage from sand and dirt. Keep a safe distance and keep children away. Do not expose the product to rain or use it in damp or wet environments. Ensure that the work area is well lit. Slight color variations caused by lighting and 13 cm measurement deviations may occur.
