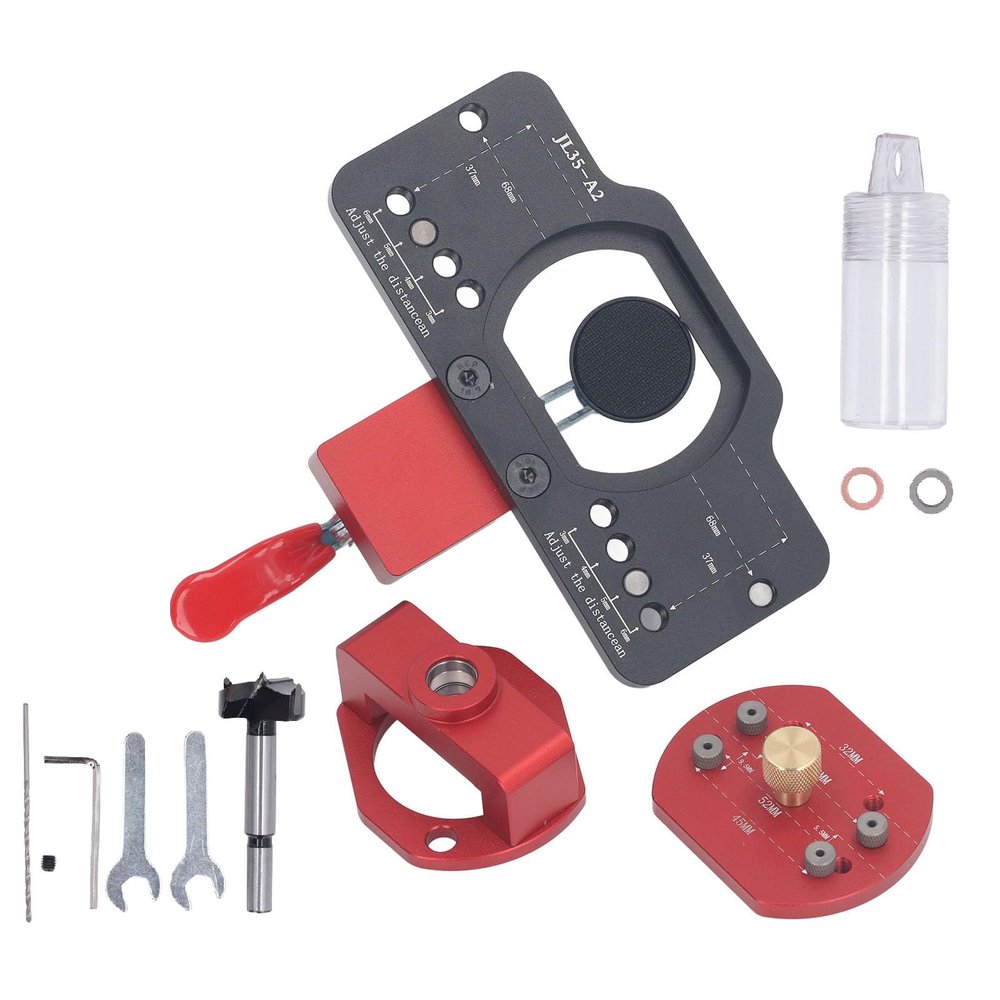

35 mm Concealed Hinge Drilling Jig with Hole Guide

Description

• Compact and portable: Lightweight design is convenient for on-site woodworking applications.
• Easy to use: Secure the jig, tighten the handle, and press down gently for efficient operation.
• Precise and reliable: Adjustable dial for 3 mm, 4 mm, 5 mm, and 6 mm hinge offsets.
• Wide application: Suitable for furniture making, woodworking, crafts, and DIY projects.
• Aluminum alloy construction: Provides accurate positioning, precise drilling, and resistance to wear, corrosion, and rust.

Specifications: Item type: Hinge drilling jig, hole guide Material: Aluminum alloy Hole cutter size: Approx. 35 mm / 1.38 in Drill bit: Approx. 2 mm / 0.08 in Panel thickness: Approx. 1525 mm / 0.590.98 in Hinge offset: Approx. 3 mm / 0.12 in, 4 mm / 0.16 in, 5 mm / 0.20 in, and 6 mm / 0.24 in Instructions: 1. Install the 35 mm hole cutter, set the drilling depth to 1213 mm, and lock the stop collar. 2. Adjust the clamping size of the black quick-release pressure block. Note: The adjustable clamping plate accommodates 1525 mm. 3. Move the punch to the marked drilling position on the panel and lock the quick clamp. 4. Tighten the drilling handle and apply even downward pressure to a depth of 1213 mm. Then drill the 2 mm screw holes on the left and right. Package contents: 1 x Hinge drilling template hole guide 1 x Drill-hole positioning locator 1 x Auxiliary punching plate 1 x 35 mm hole cutter 1 x 2 mm drill bit 1 x Stop collar 1 x Gasket 1 x Hex key 2 x Wrenches 1 x Machine screw 1 x Storage box
