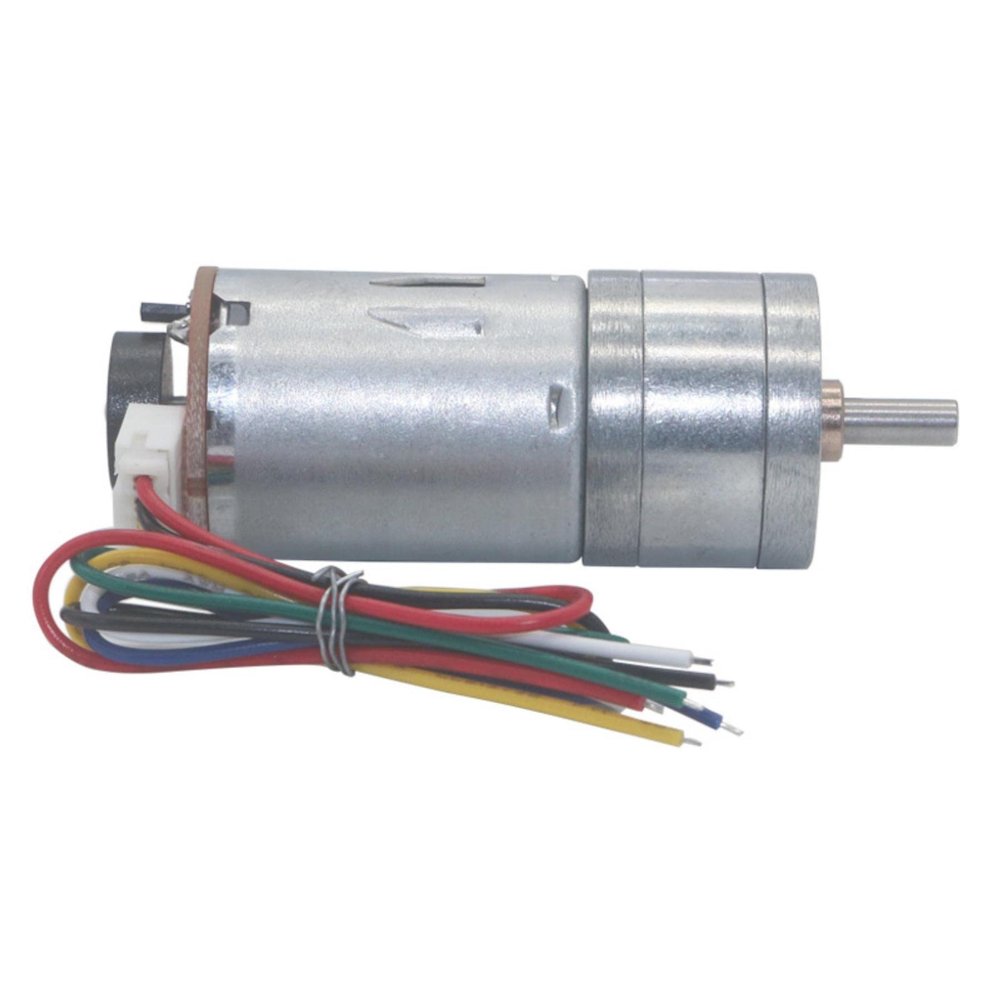

25GA370 DC Geared Motor with Encoder, 12 V High-Torque Curtain Robot Motor (12 rpm, 24 V)

Description

• No-load speed options: 12 rpm / 16 rpm / 26 rpm / 35 rpm / 60 rpm / 130 rpm / 170 rpm / 280 rpm / 620 rpm / 130 rpm
• Outer diameter: 24.4 mm; shaft diameter: 4 mm; shaft length: 9.5 mm; weight: 8391 g
• Additional technical parameters are provided in the specifications
• High torque, low speed, and low noise
• Compact size, elegant appearance, durable, and low noise
• Smooth transmission with wear-resistant gears

Wiring Red: Motor power + (reversing the connection can control the motor forward and backward) Black: Encoder power supply negative (the positive and negative poles must not be connected incorrectly to 3.35 V) Yellow: Signal feedback (11 signals per motor revolution) Green: Signal feedback (11 signals per motor revolution) Blue: Encoder power supply + positive (the positive and negative poles must not be connected incorrectly to 3.35 V) White: Motor power (reversing the connection can control the motor forward and backward) Package: 1 motor with encoder
