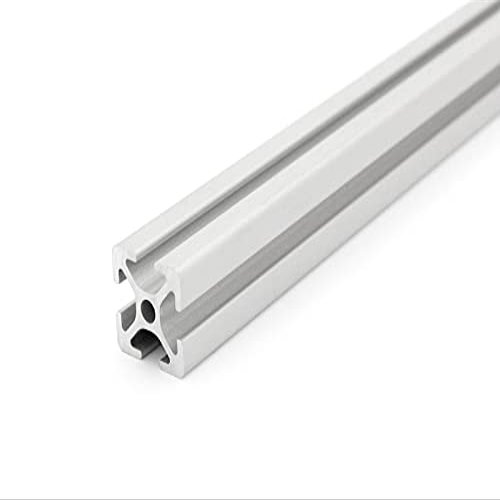

20 x 20 mm Aluminum Profile, I-Type Slot 5, Light, Silver Anodized, 2790 mm

Description

• 20 x 20 mm aluminum profile
• I-type slot 5, light version
• Silver anodized finish
• Mounting system profile
• Length: 2790 mm

20 x 20 mm I-type aluminum profile with 5 mm slot and silver anodized finish. Technical data: Profile: 20 x 20 mm; slot width: 5 mm; slot depth: 6.35 mm; core: 4.3 mm, suitable for accepting an M5 thread. Material: aluminum, natural-color anodized. Slot properties: Slot 5. Version: light. Preload: 0.2 mm +0.1/-0.15 mm. Slot dimension: 5.0 +0.3 mm. Core bore: 4.3 0.1 mm. Usable length: 6000 or 6030 +0/+10 mm. Surface: anodized finish E6/EV1, 1015 m. Anodizing contact areas: removed. Mechanical properties: Designation: EN 572-3 / EN-AW 6063. Condition: EN 515 / T66. Rp0.2: 200 N/mm. Rm: 245 N/mm. A: 8%. A50: 6%. Hardness: HB 80. Section properties: Area: 181.9 mm. Outer contour perimeter: 156.7 mm. Center of gravity: X: 10.0 mm; Y: 10.0 mm. Area moment of inertia, second degree, horizontal: IX: 7479.0 mm. Vertical: IY: 7479.0 mm. Section modulus: WX max: 747.9 mm; WX min: 747.9 mm; WY max: 747.9 mm; WY min: 747.9 mm. Nominal weight: approximately 0.493 kg/m.
