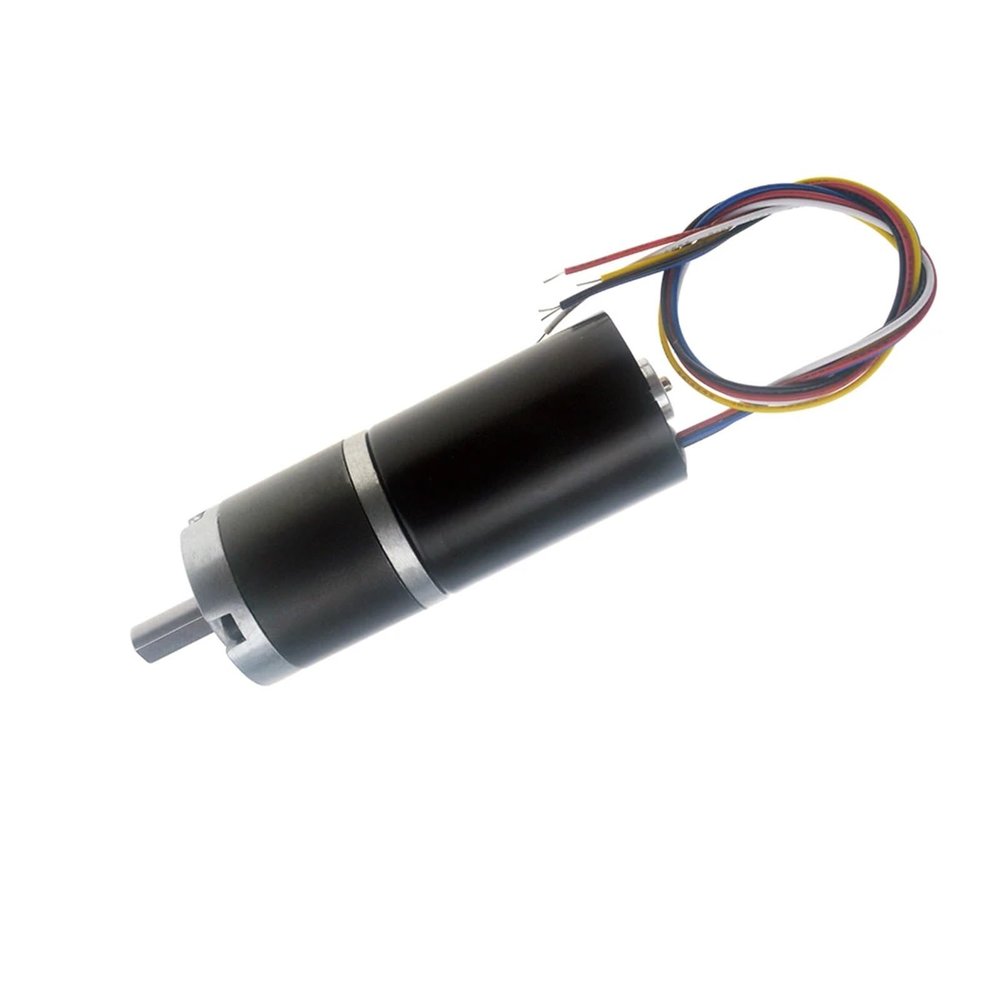

150 kg·cm High-Torque 12 V/24 V DC Brushless Planetary Gear Motor with FG Feedback and Forward/Reverse Speed Control, 11 RPM

Description

• Efficient power transmission through multiple planetary gears
• Compact design for high torque in limited spaces
• Durable construction with resistance to wear and fatigue
• Available in various specifications and models
• Low-noise operation with efficient heat dissipation

Industrial motor. High-torque 150 kgcm 12 V/24 V DC brushless planetary gear motor with FG feedback and forward/reverse PWM speed control. Specifications: Operating voltage range: 612 VDC. Rated voltage: 12 VDC. Operating temperature: -10 to +60. Storage temperature: -30 to +85. No-load current: 0.5 A. Maximum stall current: 1.5 A. Motor brush type: Brushless. Gear type: Metal planetary. Rated torque: 35 kgcm. Maximum stall torque: 150 kgcm. Wire functions: Red wire: Power+ Black wire: Power- White wire: CW/CCW Blue wire: PWM speed control (15 kHz, 25 kHz) Yellow wire: FG speed feedback, 6 PPR.
